W6280-5SG-P-528

Active

Conxall/Switchcraft

CONN PLUG FMALE 5POS GOLD CRIMP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN PLUG FMALE 5POS GOLD CRIMP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 14.37

General part information

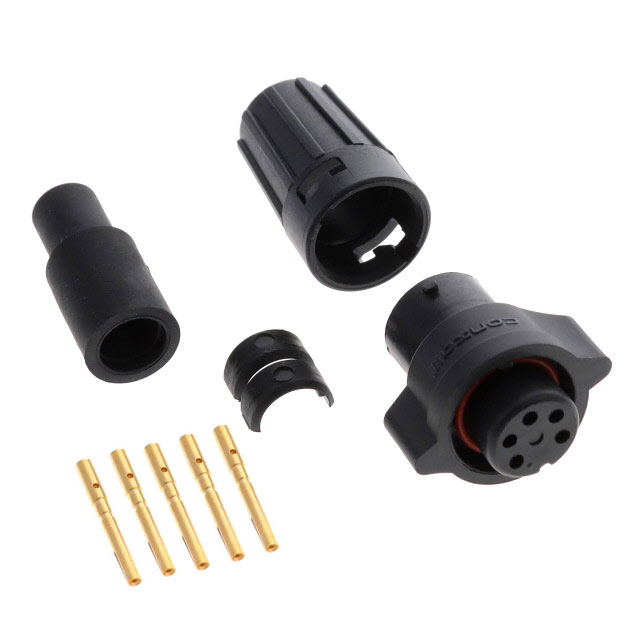

5 Position Circular Connector Plug, Female Sockets Crimp

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	W6280-5SG-P-528	W6280-5 Series

Applications	Automotive, Communication Systems, Instrumentation	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Thermoplastic	Thermoplastic
Cable Opening [custom]	6.6 mm, 7.11 mm	6.6 - 7.11 mm
Cable Opening [custom]	0.28 in, 0.26 in	0.26 - 0.28 in
Color	Black	Black
Connector Type	Female Sockets, Plug	Plug, Male Pins, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Coupling Nut, UV Resistant, Backshell	Coupling Nut, UV Resistant, Backshell
Ingress Protection	IP68, IP66, IP67	IP68, IP66, IP67
Insert Material	Thermoplastic	Thermoplastic
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	Crimp	Crimp
Voltage Rating	300 VAC	300 VAC

CONN PLUG MALE 5POS GOLD CRIMP

Part	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Insert Material	Connector Type	Fastening Type	Mounting Type	Termination	Primary Material	Voltage Rating	Backshell Material, Plating	Color	Contact Finish - Mating	Ingress Protection	Features	Shielding	Orientation	Applications	Cable Opening [custom]	Cable Opening [custom]
Conxall/Switchcraft W6280-5PG-P-3DC	Copper Alloy	85 °C	-40 °C	Varies by Wire Gauge	Thermoplastic	Male Pins, Plug	Bayonet Lock	Free Hanging (In-Line)	Crimp	Plastic	300 VAC	Thermoplastic	Black	Gold	IP66, IP67, IP68	Backshell, Coupling Nut, UV Resistant	Unshielded	Keyed	Automotive, Communication Systems, Instrumentation
Conxall/Switchcraft W6280-5SG-P-3DC	Copper Alloy	85 °C	-40 °C	Varies by Wire Gauge	Thermoplastic	Female Sockets, Plug	Bayonet Lock	Free Hanging (In-Line)	Crimp	Plastic	300 VAC	Thermoplastic	Black	Gold	IP66, IP67, IP68	Backshell, Coupling Nut, UV Resistant	Unshielded	Keyed	Automotive, Communication Systems, Instrumentation
Conxall/Switchcraft W6280-5SG-P-528	Copper Alloy	85 °C	-40 °C	Varies by Wire Gauge	Thermoplastic	Female Sockets, Plug	Bayonet Lock	Free Hanging (In-Line)	Crimp	Plastic	300 VAC	Thermoplastic	Black	Gold	IP66, IP67, IP68	Backshell, Coupling Nut, UV Resistant	Unshielded	Keyed	Automotive, Communication Systems, Instrumentation	6.6 mm, 7.11 mm	0.26 in, 0.28 in
