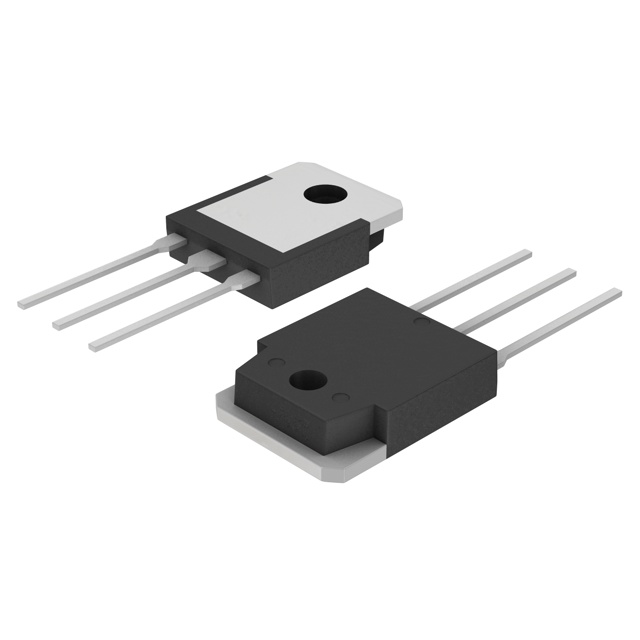

2STA1694

Active

STMicroelectronics

TRANS PNP 120V 8A TO3P

Search across all available documentation for this part.

Active

STMicroelectronics

TRANS PNP 120V 8A TO3P

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2STA1694	2STA Series

Current - Collector (Ic) (Max) [Max]	8 A	1 - 8 A
Current - Collector Cutoff (Max) [Max]	10 µA	1 - 100 µA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	70	70 - 100
Frequency - Transition	20 MHz	20 - 70 MHz
Mounting Type	Through Hole	Through Hole
Operating Temperature	150 °C	150 °C
Package / Case	SC-65-3, TO-3P-3	SC-65-3, TO-3P-3, TO-220-3 Full Pack
Power - Max [Max]	80 W	20 - 100 W
Supplier Device Package	TO-3P	TO-3P, TO-220FP
Transistor Type	PNP	PNP
Vce Saturation (Max) @ Ib, Ic	1.5 V	1 - 700 V
Voltage - Collector Emitter Breakdown (Max)	-	140 - 230 V
Voltage - Collector Emitter Breakdown (Max) [Max]	120 V	120 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	600	$ 1.49

TRANS PNP 120V 8A TO3P

Part	Power - Max [Max]	Current - Collector Cutoff (Max) [Max]	Vce Saturation (Max) @ Ib, Ic	Frequency - Transition	Voltage - Collector Emitter Breakdown (Max) [Max]	Transistor Type	Package / Case	Current - Collector (Ic) (Max) [Max]	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Supplier Device Package	Mounting Type	Operating Temperature	Voltage - Collector Emitter Breakdown (Max)
STMicroelectronics 2STA1694	80 W	10 µA	1.5 V	20 MHz	120 V	PNP	SC-65-3, TO-3P-3	8 A	70	TO-3P	Through Hole	150 °C
STMicroelectronics 2STA1837	20 W	1 µA	1 V	70 MHz		PNP	TO-220-3 Full Pack	1 A	100 hFE	TO-220FP	Through Hole	150 °C	230 V
STMicroelectronics 2STA1695	100 W	100 nA	700 mV	20 MHz		PNP	SC-65-3, TO-3P-3		70	TO-3P	Through Hole	150 °C	140 V

General part information

Bipolar (BJT) Transistor PNP 120 V 8 A 20MHz 80 W Through Hole TO-3P

Technical documentation and resources
