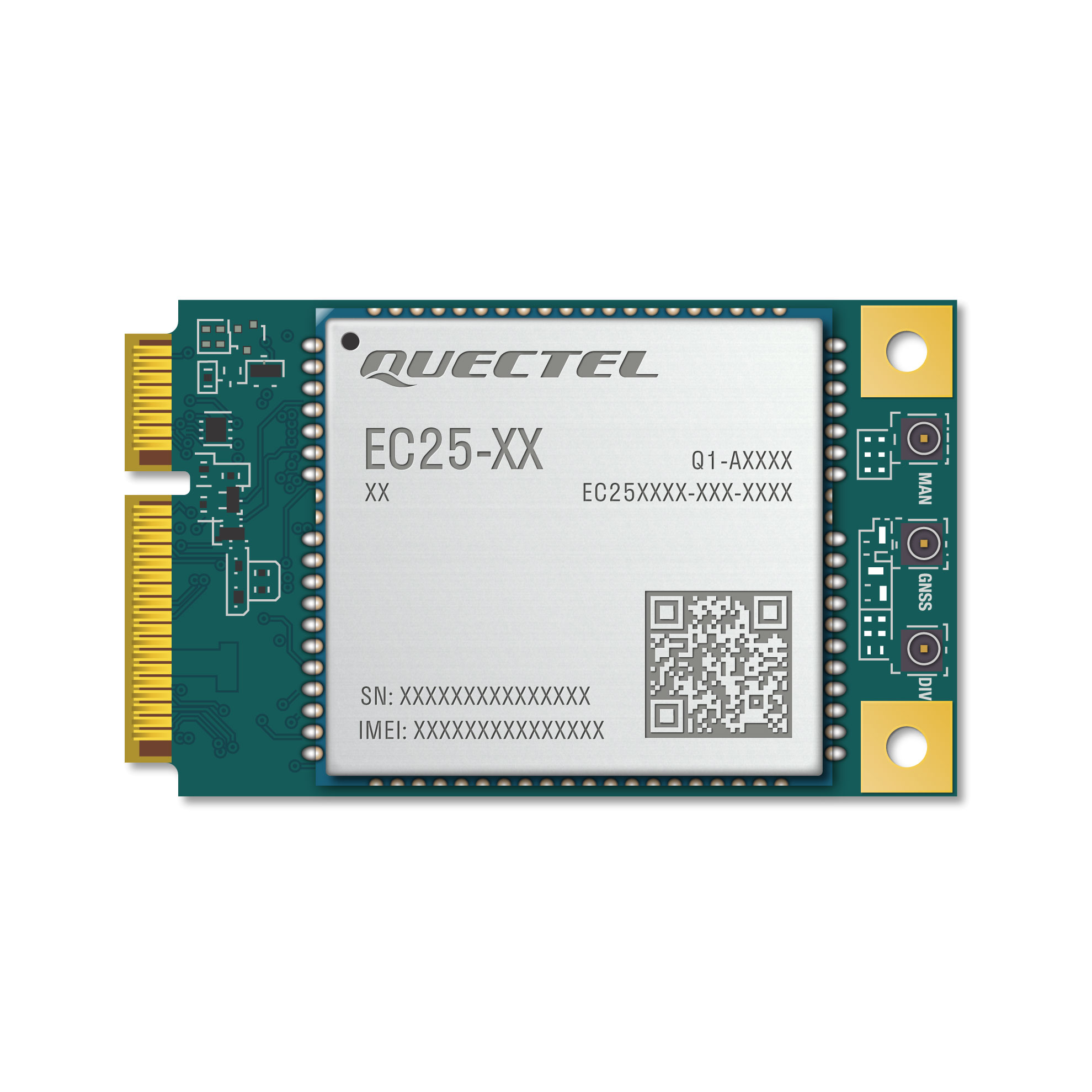

EG25GGB-MINIPCIE

Active

Quectel

RF TXRX MODULE CARD EDGE

Search across all available documentation for this part.

Active

Quectel

RF TXRX MODULE CARD EDGE

Technical Specifications

Parameters and characteristics commom to parts in this series

RF TXRX MODULE CARD EDGE

Part	Mounting Type	Antenna Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Serial Interfaces	Utilized IC / Part	Package / Case	Protocol	Current - Transmitting	Current - Receiving	Data Rate	RF Family/Standard	Sensitivity	Power - Output
Quectel EG25GGB-MINIPCIE	Card Edge	Antenna Not Included	3.6 V	3 V	-35 °C	75 ░C	I2C, PCM, UART, USB	MDM9207-0	Module
Quectel EG25GGB-MINIPCIE-S	Card Edge	Antenna Not Included	3.6 V	3 V	-35 °C	75 ░C	I2C, PCM, UART, USB	MDM9207-0	Module
Quectel EG25GGC-128-SGNS	Card Edge	Antenna Not Included	3.6 V	3 V	-35 °C	75 ░C	I2C, PCM, UART, USB	MDM9207-0	Module	EDGE, GPRS, GSM, LTE, UMTS, WCDMA	35 mA	35 mA	150 Mbps	Cellular	-110.5 dBm	33 dBm
Quectel EG25GGCTEA-128-SGNS	Card Edge	Antenna Not Included	3.6 V	3 V	-35 °C	75 ░C	I2C, PCM, UART, USB		Module	EDGE, GPRS, GSM, LTE, UMTS, WCDMA	35 mA	35 mA	150 Mbps	Cellular	-110.5 dBm	33 dBm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Transceiver Module Antenna Not Included Card Edge

Technical documentation and resources

No documents available
