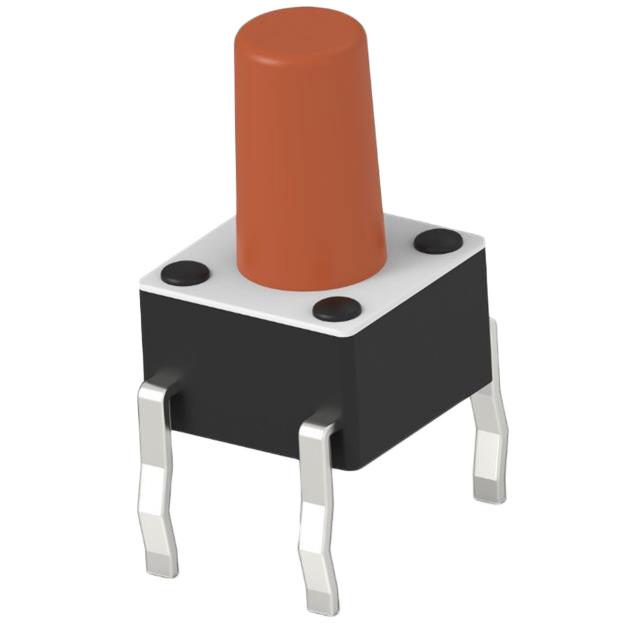

1-1825910-3

Active

TE Connectivity Raychem Cable Protection

SWITCH TACTILE SPST-NO 0.05A 24V

Deep-Dive with AI

Search across all available documentation for this part.

1-1825910-3

Active

TE Connectivity Raychem Cable Protection

SWITCH TACTILE SPST-NO 0.05A 24V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1-1825910-3

Actuator Height off PCB, Vertical	9.5 mm
Actuator Material	Polybutylene Terephthalate (PBT)
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 24 VDC
Illumination	Non-Illuminated
Mechanical Life	100000 Cycles
Mounting Type	Through Hole
Operating Force	100 gf
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-35 °C
Outline [x]	6 mm
Outline [y]	6 mm
Switch Function	Off-Mom
Switch Travel	0.25 mm
Termination Style	PC Pin

ALCOSWITCH FSM Series

Part	Operating Force	Switch Function	Actuator Orientation	Mechanical Life	Illumination	Actuator Type	Termination Style	Actuator Height off PCB, Vertical [z]	Actuator Material	Outline [y]	Outline [x]	Circuit	Switch Travel	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Rating @ Voltage	Actuator Height off PCB, Vertical
TE Connectivity Raychem Cable Protection 1-1825910-2	520 gf	Off-Mom	Top Actuated	100000 Cycles	Non-Illuminated	Standard	PC Pin	7 mm	Nylon 6/6 Polyamide (PA66)	6 mm	6 mm	SPST-NO	0.25 mm	Through Hole	-35 °C	85 °C	0.05 A 24 VDC
TE Connectivity Raychem Cable Protection 1825910-6		Off-Mom	Top Actuated	100000 Cycles	Non-Illuminated	Standard	PC Pin		Polybutylene Terephthalate (PBT)	6 mm	6 mm	SPST-NO	0.25 mm	Through Hole	-40 °C	105 ░C	0.05 A 24 VDC	5 mm
TE Connectivity Raychem Cable Protection 3-1825910-7	520 gf	Off-Mom	Top Actuated	100000 Cycles	Non-Illuminated	Standard	PC Pin		Nylon 6/6 Polyamide (PA66)	6 mm	6 mm	SPST-NO	0.25 mm	Through Hole	-35 °C	85 °C	0.05 A 24 VDC	8.5 mm
TE Connectivity Raychem Cable Protection 3-1825910-5		Off-Mom	Top Actuated	100000 Cycles	Non-Illuminated	Standard	PC Pin		Nylon 6/6 Polyamide (PA66)	6 mm	6 mm	SPST-NO	0.25 mm	Through Hole	-35 °C	85 °C	0.05 A 24 VDC	8.5 mm
TE Connectivity Raychem Cable Protection 1825910-8	520 gf	Off-Mom	Top Actuated	100000 Cycles	Non-Illuminated	Standard	PC Pin		Polybutylene Terephthalate (PBT)	6 mm	6 mm	SPST-NO	0.25 mm	Through Hole	-40 °C	105 ░C	0.05 A 12 VDC	5 mm
TE Connectivity Raychem Cable Protection 2-1825910-8	260 gf	Off-Mom	Top Actuated	100000 Cycles	Non-Illuminated	Standard	PC Pin	13 mm	Nylon 6/6 Polyamide (PA66)	6 mm	6 mm	SPST-NO	0.25 mm	Through Hole	-40 °C	105 ░C	0.05 A 24 VDC
TE Connectivity Raychem Cable Protection 2-1825910-9	520 gf	Off-Mom	Top Actuated	100000 Cycles	Non-Illuminated	Standard	PC Pin	13 mm	Nylon 6/6 Polyamide (PA66)	6 mm	6 mm	SPST-NO	0.25 mm	Through Hole	-35 °C	85 °C	0.05 A 24 VDC
TE Connectivity Raychem Cable Protection 1-1825910-3	100 gf	Off-Mom	Top Actuated	100000 Cycles	Non-Illuminated	Standard	PC Pin		Polybutylene Terephthalate (PBT)	6 mm	6 mm	SPST-NO	0.25 mm	Through Hole	-35 °C	85 °C	0.05 A 24 VDC	9.5 mm
TE Connectivity Raychem Cable Protection 1825910-1	100 gf	Off-Mom	Top Actuated	100000 Cycles	Non-Illuminated	Standard	PC Pin	4.3 mm	Polybutylene Terephthalate (PBT)	6 mm	6 mm	SPST-NO	0.25 mm	Through Hole	-35 °C	85 °C	0.05 A 24 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	30000	$ 0.09

Description

General part information

ALCOSWITCH FSM Series

Tactile Switch SPST-NO Top Actuated Through Hole
