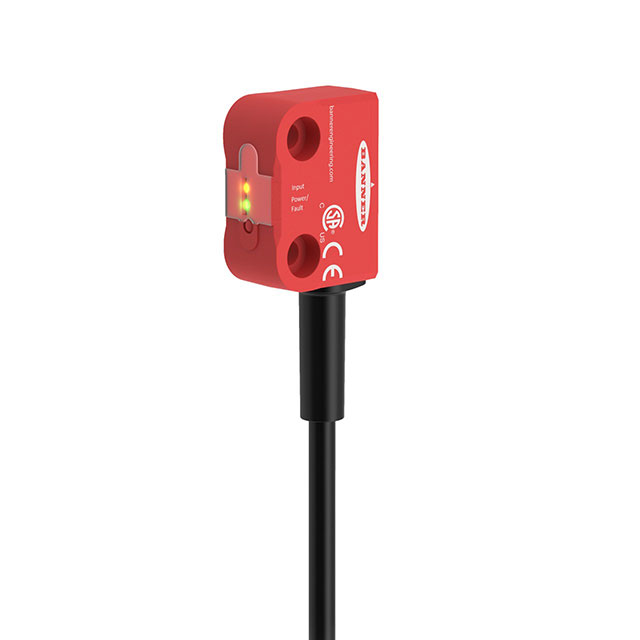

SI-RFPT-L2M

Active

BANNER ENGINEERING

SAFETY INTERLOCK SWITCH, SI-RF SERIES, DPST-NC, CABLE, IP69

Search across all available documentation for this part.

Active

BANNER ENGINEERING

SAFETY INTERLOCK SWITCH, SI-RF SERIES, DPST-NC, CABLE, IP69

Technical Specifications

Parameters and characteristics for this part

Specification	SI-RFPT-L2M

Actuator Type	Non-Contact
Approval Agency	cULus, CE
Current Rating (Amps)	100 mA
Features	Automatic Reset
Ingress Protection	IP69K - Dust Tight, High Temp Water Jets, Waterproof
Must Operate	10 mm
Must Release	25 mm
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Termination Style	Cable Leads
Type	RFID
Voltage - Supply	24 VDC
Voltage Rating	24 VDC

Part	Actuator Type	Current Rating (Amps)	Approval Agency	Must Release	Must Operate	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply	Voltage Rating	Features	Termination Style	Type
BANNER ENGINEERING SI-RFPT-HP5	Non-Contact	100 mA	CE cULus	25 mm	10 mm	IP69K - Dust Tight High Temp Water Jets Waterproof	70 °C	-25 °C	24 VDC	24 VDC	Automatic Reset	Cable with Connector (M12)	RFID
BANNER ENGINEERING SI-RFPT-LP5	Non-Contact	100 mA	CE cULus	25 mm	10 mm	IP69K - Dust Tight High Temp Water Jets Waterproof	70 °C	-25 °C	24 VDC	24 VDC	Automatic Reset	Cable with Connector (M12)	RFID
BANNER ENGINEERING SI-RFPT-L2M	Non-Contact	100 mA	CE cULus	25 mm	10 mm	IP69K - Dust Tight High Temp Water Jets Waterproof	70 °C	-25 °C	24 VDC	24 VDC	Automatic Reset	Cable Leads	RFID
BANNER ENGINEERING SI-RFPT-UP5	Non-Contact	100 mA	CE cULus	25 mm	10 mm	IP69K - Dust Tight High Temp Water Jets Waterproof	70 °C	-25 °C	24 VDC	24 VDC	Automatic Reset	Cable with Connector (M12)	RFID

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 162.00
Newark	Each	1	$ 160.55

General part information

SAFETY INTERLOCK SWITCH, SI-RF SERIES, DPST-NC, CABLE, IP69
