STTH4R06DEE-TR

Active

STMicroelectronics

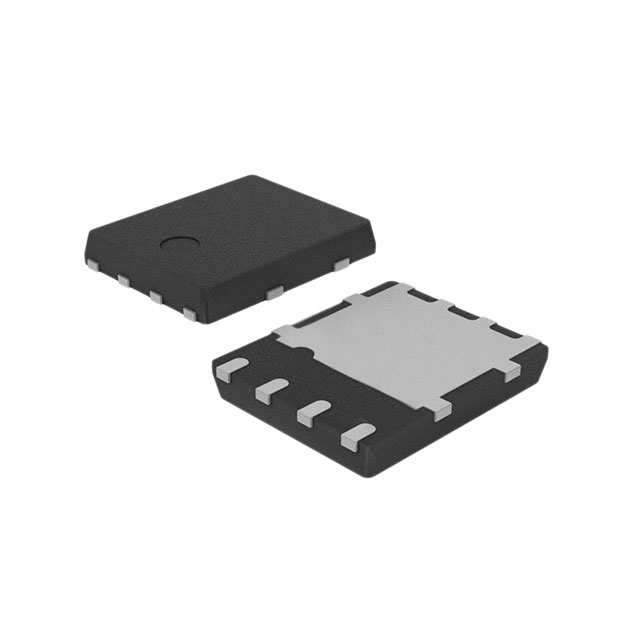

DIODE STANDARD 600V 4A POWERFLAT

Search across all available documentation for this part.

Active

STMicroelectronics

DIODE STANDARD 600V 4A POWERFLAT

Technical Specifications

Parameters and characteristics for this part

Specification	STTH4R06DEE-TR

Current - Average Rectified (Io)	4 A
Current - Reverse Leakage @ Vr	3 µA
Mounting Type	Surface Mount
Operating Temperature - Junction	150 °C
Package / Case	8-PowerVDFN
Reverse Recovery Time (trr)	50 ns
Speed	200 mA, 500 ns
Supplier Device Package	PowerFlat™ (3.3x3.3)
Supplier Device Package [x]	3.3
Supplier Device Package [y]	3.3
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	600 V
Voltage - Forward (Vf) (Max) @ If	1.7 V

DIODE STANDARD 600V 4A POWERFLAT

Part	Current - Average Rectified (Io)	Current - Reverse Leakage @ Vr	Voltage - Forward (Vf) (Max) @ If	Voltage - DC Reverse (Vr) (Max) [Max]	Operating Temperature - Junction	Package / Case	Technology	Mounting Type	Reverse Recovery Time (trr)	Speed	Supplier Device Package [x]	Supplier Device Package	Supplier Device Package [y]
STMicroelectronics STTH4R06DEE-TR	4 A	3 µA	1.7 V	600 V	150 °C	8-PowerVDFN	Standard	Surface Mount	50 ns	200 mA, 500 ns	3.3	PowerFlat™ (3.3x3.3)	3.3

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Diode 600 V 4A Surface Mount PowerFlat™ (3.3x3.3)
