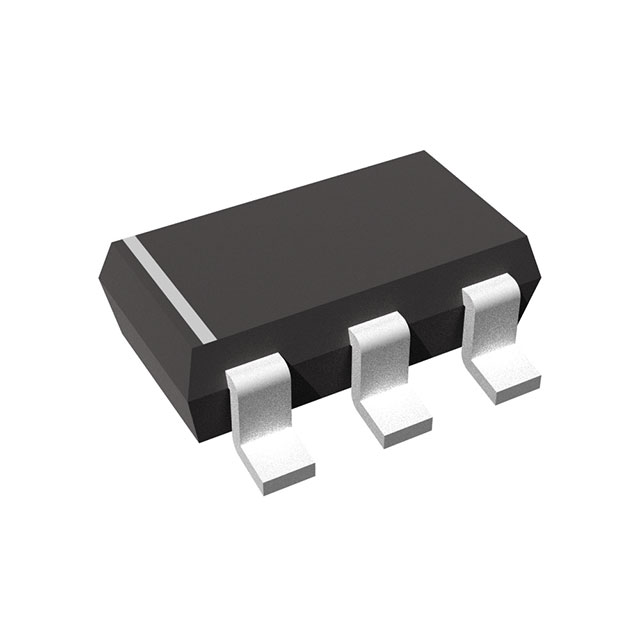

R1202N723D-TR-FE

Active

Nisshinbo Micro Devices Inc

IC REG BOOST ADJ 700MA TSOT23-6

Search across all available documentation for this part.

Active

Nisshinbo Micro Devices Inc

IC REG BOOST ADJ 700MA TSOT23-6

Technical Specifications

Parameters and characteristics for this part

Part	Function	Frequency - Switching	Voltage - Output (Max) [Max]	Voltage - Input (Max) [Max]	Supplier Device Package	Number of Outputs	Package / Case	Output Type	Voltage - Output (Min/Fixed)	Mounting Type	Output Configuration	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Topology	Current - Output
Nisshinbo Micro Devices Inc R1202N323D-TR-FE	Step-Up	1.2 MHz	14 V	5.5 V	TSOT-23-6	1	SOT-23-6 Thin TSOT-23-6	Adjustable	1 V	Surface Mount	Positive	1.8 V	85 °C	-40 °C	Boost
Nisshinbo Micro Devices Inc R1202L711D-TR	Step-Up	1.2 MHz	23 V	5.5 V	DFN1616-6B	1	6-XFDFN Exposed Pad	Adjustable	1 V	Surface Mount	Positive	1.8 V	85 °C	-40 °C	Boost	350 mA
Nisshinbo Micro Devices Inc R1202N323B-TR-FE	Step-Up	1.2 MHz	14 V	5.5 V	TSOT-23-6	1	SOT-23-6 Thin TSOT-23-6	Adjustable	1 V	Surface Mount	Positive	2.3 V	85 °C	-40 °C	Boost
Nisshinbo Micro Devices Inc R1202L721A-TR	Step-Up	1.2 MHz	23 V	5.5 V	DFN1616-6B	1	6-XFDFN Exposed Pad	Adjustable	1 V	Surface Mount	Positive	2.3 V	85 °C	-40 °C	Boost
Nisshinbo Micro Devices Inc R1202N723D-TR-FE	Step-Up	1.2 MHz	23 V	5.5 V	TSOT-23-6	1	SOT-23-6 Thin TSOT-23-6	Adjustable	1 V	Surface Mount	Positive	1.8 V	85 °C	-40 °C	Boost

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Boost Switching Regulator IC Positive Adjustable 1V 1 Output 700mA (Switch) SOT-23-6 Thin, TSOT-23-6
