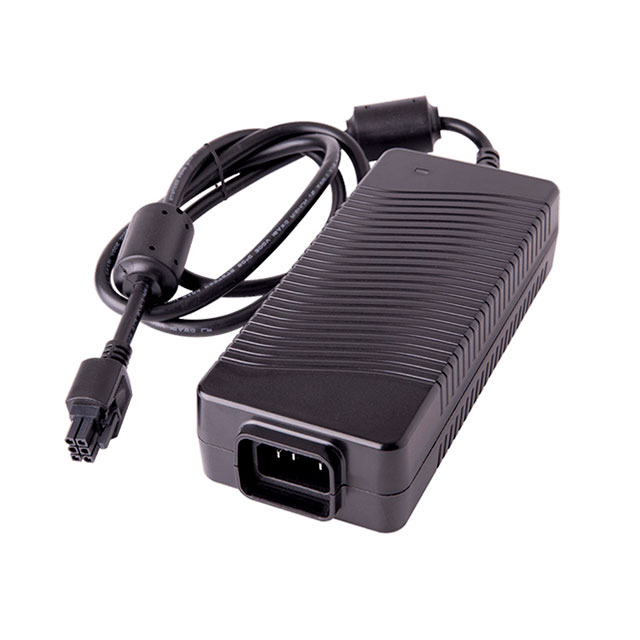

GE150A1251N01

Active

SL POWER / Advanced Energy

DESKTOP AC ADAPTERS 145W 12V 12.1A MED 6 PIN

Search across all available documentation for this part.

Active

SL POWER / Advanced Energy

DESKTOP AC ADAPTERS 145W 12V 12.1A MED 6 PIN

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Desktop AC Adapters 145W 12V 12.1A Med 6 pin

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	GE150A1251N01	GE150A1251 Series

Applications	ITE (Commercial), Medical	ITE (Commercial), Medical
Approval Agency	UL, CE, cULus	UL, CE, cULus
Cord Length	45.9 in	45.9 in
Cord Length	1.17 m	1.17 m
Current - Output (Max) [Max]	12.5 A	12.1 - 12.5 A
Efficiency	CoC Tier 2, Level VI	CoC Tier 2, Level VI
Form	Desktop (Class II)	Desktop (Class II), Desktop (Class I)
Input Connector	IEC 320-C8	IEC 320-C8, IEC 320-C14
Input Type	Cord	Cord
No Load Power Consumption [Max]	150 mW	150 mW
Operating Temperature [Max]	50 °C	50 °C
Operating Temperature [Min]	-20 C	-20 C
Output Connector	Rectangular, 6 Position	Rectangular, 6 Position
Power (Watts)	150 W	145 - 150 W
Region Utilized	International	International
Size / Dimension [x]	164.1 mm	164.1 mm
Size / Dimension [x]	6.46 "	6.46 "
Size / Dimension [y]	2.83 in	2.83 in
Size / Dimension [y]	71.9 mm	71.9 mm
Size / Dimension [z]	37.1 mm	37.1 mm
Size / Dimension [z]	1.46 "	1.46 "
Standard Number	60601-1, 62368-1	60601-1, 62368-1
Voltage - Input [Max]	264 VAC	264 VAC
Voltage - Input [Min]	90 VAC	90 VAC
Voltage - Output	12 V	12 V

Desktop AC Adapters 145W 12V 12.1A Med 6 pin

Part	Form	Approval Agency	Applications	Voltage - Output	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Input Type	Efficiency	Standard Number	Region Utilized	Voltage - Input [Min]	Voltage - Input [Max]	No Load Power Consumption [Max]	Cord Length	Cord Length	Current - Output (Max) [Max]	Input Connector	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Output Connector
SL POWER / Advanced Energy GE150A1251N01	Desktop (Class II)	CE, cULus, UL	ITE (Commercial), Medical	12 V	164.1 mm	2.83 in	37.1 mm	71.9 mm	1.46 "	6.46 "	Cord	CoC Tier 2, Level VI	60601-1, 62368-1	International	90 VAC	264 VAC	150 mW	45.9 in	1.17 m	12.5 A	IEC 320-C8	50 °C	-20 C	150 W	Rectangular, 6 Position
SL POWER / Advanced Energy GE150A1251F01	Desktop (Class I)	CE, cULus, UL	ITE (Commercial), Medical	12 V	164.1 mm	2.83 in	37.1 mm	71.9 mm	1.46 "	6.46 "	Cord	CoC Tier 2, Level VI	60601-1, 62368-1	International	90 VAC	264 VAC	150 mW	45.9 in	1.17 m	12.1 A	IEC 320-C14	50 °C	-20 C	145 W	Rectangular, 6 Position
