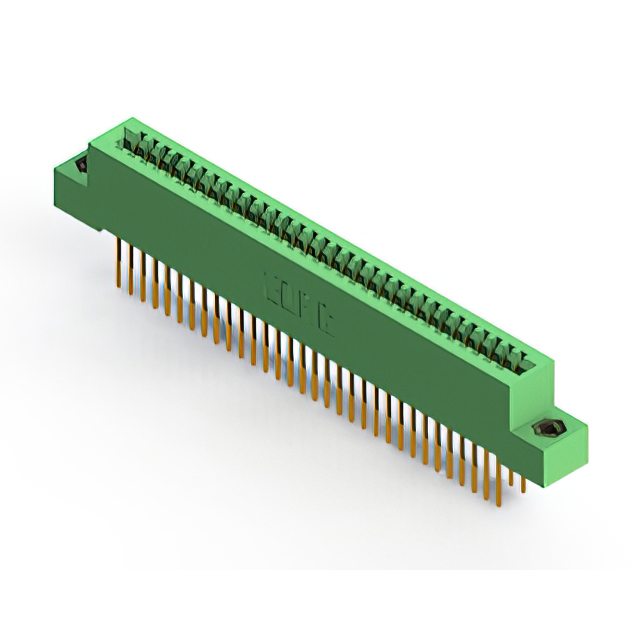

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 64 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
342-064-523-208
ActiveEDAC Inc.
CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 64 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 342-064-523-208 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 64 |
| Number of Positions/Bay/Row [custom] | 32 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
342-064 Series
| Part | Material - Insulation | Contact Type | Card Type | Color | Number of Positions | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Positions/Bay/Row [custom] | Termination Rows | Pitch [x] | Pitch [x] | Number of Rows | Mounting Type | Read Out | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Gender | Contact Finish Thickness | Contact Finish Thickness | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Contact Finish | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Polyester Thermoplastic | Cantilever | Non Specified - Dual Edge | Green | 64 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 32 | 2 | 2.54 mm | 0.1 in | 2 | Through Hole | Dual | Copper Alloy | -40 °C | 105 ░C | Wire Wrap | Female | 10 Áin | 0.25 Ám | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | Gold | |
EDAC Inc. | Polyester Thermoplastic | Cantilever | Non Specified - Dual Edge | Green | 64 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 32 | 2 | 2.54 mm | 0.1 in | 2 | Board Edge Straddle Mount | Dual | Copper Alloy | -40 °C | 105 ░C | Solder Eyelet(s) | Female | 10 Áin | 0.25 Ám | 4-40 Flush Mount Threaded Insert Top Opening | Gold | Card Extender | ||
EDAC Inc. | Polyester Thermoplastic | Cantilever | Non Specified - Dual Edge | Green | 64 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 32 | 2 | 2.54 mm | 0.1 in | 2 | Through Hole | Dual | Copper Alloy | -40 °C | 105 ░C | Solder | Female | 10 Áin | 0.25 Ám | 4-40 Flush Mount Threaded Insert Top Opening | Gold | |||
EDAC Inc. | Polyester Thermoplastic | Cantilever | Non Specified - Dual Edge | Green | 64 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 32 | 2 | 2.54 mm | 0.1 in | 2 | Through Hole | Dual | Copper Alloy | -40 °C | 105 ░C | Solder | Female | 10 Áin | 0.25 Ám | 2.95 mm | 0.116 in | Floating Bobbin Flush Mount | Gold | |
EDAC Inc. | Polyester Thermoplastic | Cantilever | Non Specified - Dual Edge | Green | 64 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 32 | 2 | 2.54 mm | 0.1 in | 2 | Through Hole | Dual | Copper Alloy | -40 °C | 105 ░C | Wire Wrap | Female | 10 Áin | 0.25 Ám | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | Gold | |
EDAC Inc. | Polyester Thermoplastic | Cantilever | Non Specified - Dual Edge | Green | 64 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 32 | 2 | 2.54 mm | 0.1 in | 2 | Board Edge Straddle Mount | Dual | Copper Alloy | -40 °C | 105 ░C | Solder Eyelet(s) | Female | 10 Áin | 0.25 Ám | 2.95 mm | 0.116 in | Floating Bobbin Flush Mount | Gold | Card Extender |
EDAC Inc. | Polyester Thermoplastic | Cantilever | Non Specified - Dual Edge | Green | 64 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 32 | 2 | 2.54 mm | 0.1 in | 2 | Through Hole | Dual | Copper Alloy | -40 °C | 105 ░C | Solder Eyelet(s) | Female | 10 Áin | 0.25 Ám | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | Gold | |
EDAC Inc. | Polyester Thermoplastic | Cantilever | Non Specified - Dual Edge | Green | 64 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 32 | 2 | 2.54 mm | 0.1 in | 2 | Through Hole | Dual | Copper Alloy | -40 °C | 105 ░C | Solder | Female | 10 Áin | 0.25 Ám | 4-40 Flush Mount Threaded Insert Top Opening | Gold | |||
EDAC Inc. | Polyester Thermoplastic | Cantilever | Non Specified - Dual Edge | Green | 64 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 32 | 2 | 2.54 mm | 0.1 in | 2 | Board Edge Straddle Mount | Dual | Copper Alloy | -40 °C | 105 ░C | Solder | Female | 10 Áin | 0.25 Ám | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | Gold | Card Extender |
EDAC Inc. | Polyester Thermoplastic | Cantilever | Non Specified - Dual Edge | Green | 64 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 32 | 2 | 2.54 mm | 0.1 in | 2 | Through Hole Right Angle | Dual | Copper Alloy | -40 °C | 105 ░C | Solder Wire Wrap | Female | 10 Áin | 0.25 Ám | Flush Mount M3 Threaded Insert Top Opening | Gold |
