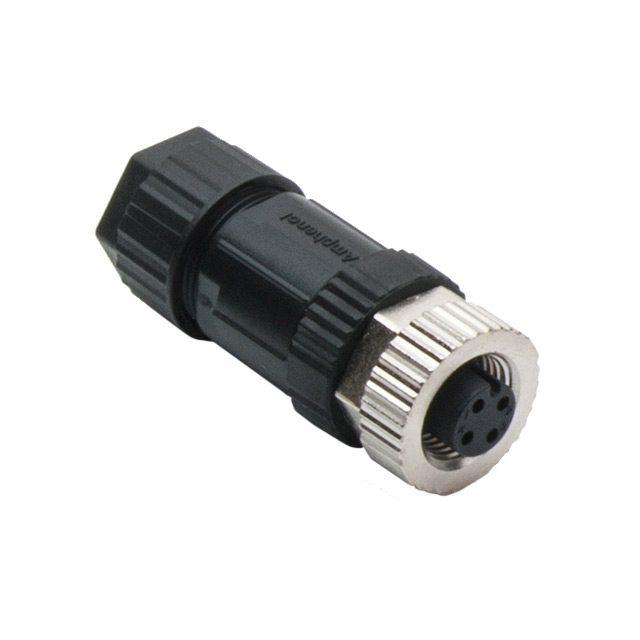

M12A-04BFFB-SL7001

Active

Amphenol LTW

SENSOR CONNECTOR, M SERIES, M12, FEMALE, 4 POSITIONS, SCREW SOCKET, STRAIGHT CABLE MOUNT

Search across all available documentation for this part.

Active

Amphenol LTW

SENSOR CONNECTOR, M SERIES, M12, FEMALE, 4 POSITIONS, SCREW SOCKET, STRAIGHT CABLE MOUNT

Technical Specifications

Parameters and characteristics for this part

Part	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Termination	Contact Finish - Mating	Shielding	Backshell Material, Plating	Ingress Protection	Primary Material	Voltage Rating	Mounting Type	Color	Connector Type	Insert Material	Orientation	Shell Size - Insert	Features	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Number of Positions	Contact Material	Shell Material	Shell Finish
Amphenol LTW M12A-04BFFB-SR7001	0.276 in	4 mm	0.157 in	7 mm	Screw	Gold	Unshielded	Nylon Polyamide (PA)	IP67 - Dust Tight Waterproof	Plastic	250 VDC	Free Hanging (In-Line) Right Angle	Black	Female Sockets Plug	Nylon Polyamide (PA)	A	M12-4	Backshell Coupling Nut	-40 °C	105 ░C	4 A	4	Copper Alloy
Amphenol LTW M12A-04BFFB-SL7001					Screw	Gold	Unshielded	Nylon Polyamide (PA)	IP67 - Dust Tight Waterproof	Metal	250 VAC	Free Hanging (In-Line)	Black Silver	Receptacle Female Sockets	Nylon Polyamide (PA)	A	M12-4	Backshell Coupling Nut	-40 °C	105 ░C	4 A	4	Copper Alloy	Zinc Alloy	Nickel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Receptacle, Female Sockets Screw
