Technical Specifications
Parameters and characteristics for this part
| Specification | STEVAL-ILD003V1 |
|---|---|
| Contents | Board(s) |
| Embedded | False |
| Function | Dimmer |
| Supplied Contents | Board(s) |
| Type | Opto/Lighting |
| Utilized IC / Part | TS820 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 84.70 | |
Description
General part information
STEVAL-ILD003V1 Series

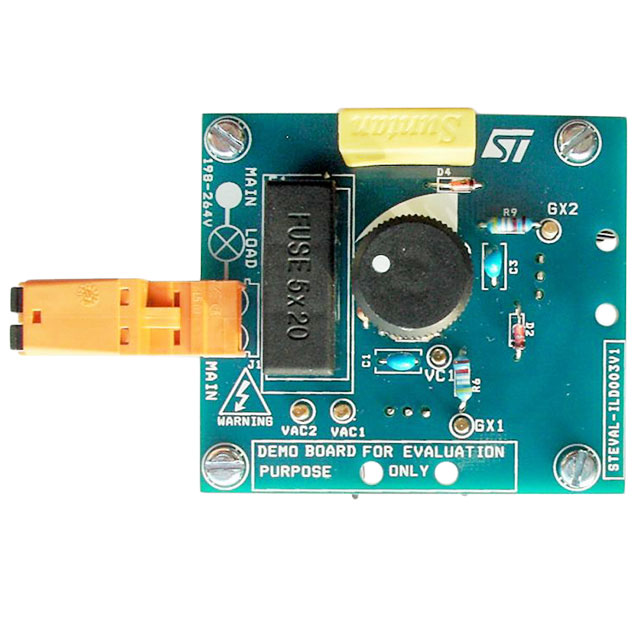

The STEVAL-ILD003V1 demonstration board is designed to propose a low-cost analog dimmer topology using a sensitive SCR TS820-600FP. The dimmer can drive typical low-consumption lamps, particularly CFL and LED dimmable lamps.
Through-hole technology is used for the most important components such as LC filter, gate resistor, turn-on delay capacitor, etc., in order to allow board modification, if needed.
The STEVAL-ILD003V1 eliminates flickering thanks to its continuous current applied through the sensitive SCR gate. This dimmer could easily replace a standard low-cost analog Triac light dimmer using a Diac-controlled circuit.
