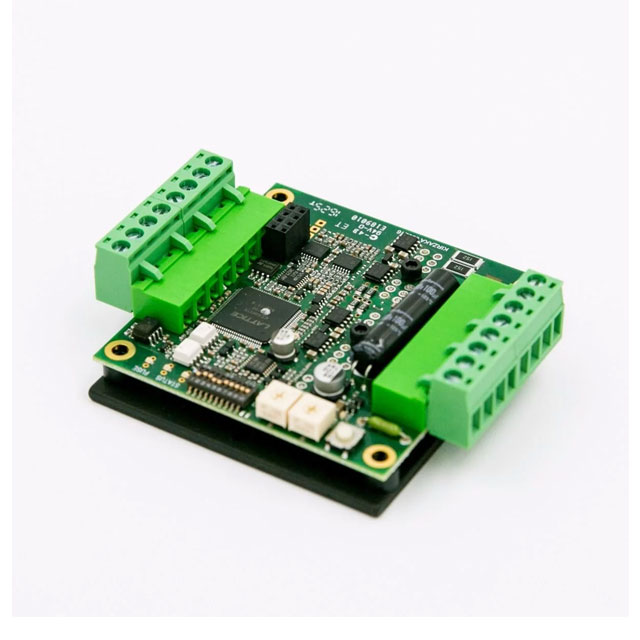

GR214V HIGH RESOLUTION STEP MOTOR CONTROL

Active

Geckodrive, Inc.

80VDC 7A HIGH RES STP MTR CTRL

Search across all available documentation for this part.

Active

Geckodrive, Inc.

80VDC 7A HIGH RES STP MTR CTRL

Technical Specifications

Parameters and characteristics for this part

Specification	GR214V HIGH RESOLUTION STEP MOTOR CONTROL

Control / Drive Type	Bipolar, Stepper
Current - Output	7 A
Motor Type	Stepper
Mounting Type	Chassis Mount
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	0 °C
Type	Board
Voltage - Load [Max]	80 V
Voltage - Load [Min]	18 V
Voltage - Supply [Max]	80 V
Voltage - Supply [Min]	18 V

80VDC 7A HIGH RES STP MTR CTRL

Part	Motor Type	Type	Operating Temperature [Max]	Operating Temperature [Min]	Control / Drive Type	Mounting Type	Current - Output	Voltage - Load [Min]	Voltage - Load [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]
Geckodrive, Inc. GR214V HIGH RESOLUTION STEP MOTOR CONTROL	Stepper	Board	75 ░C	0 °C	Bipolar, Stepper	Chassis Mount	7 A	18 V	80 V	80 V	18 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Stepper, Bipolar 18 ~ 80VDC Supply 7A 18 ~ 80V Load

Technical documentation and resources

No documents available
