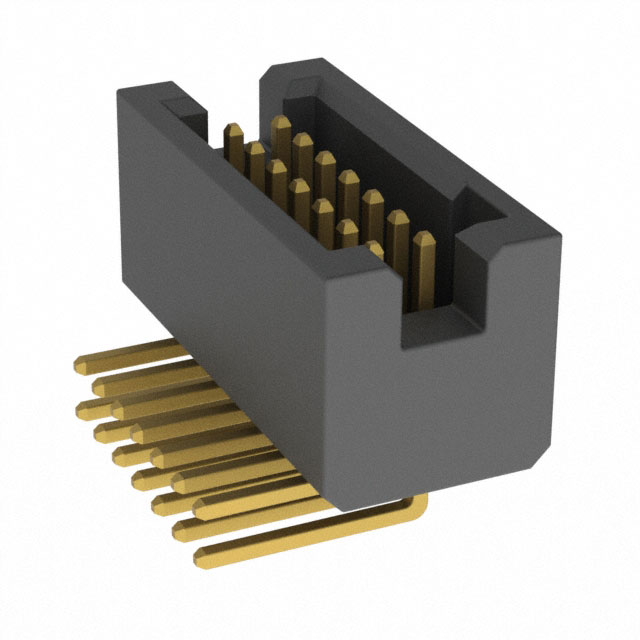

M50-4800745

Active

Harwin Inc.

7+7 POS. MALE DIL HORIZONTAL THROUGHBOARD CONN. ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM50-3000345 M50-3530842 +2

M50-4800745

Active

Harwin Inc.

7+7 POS. MALE DIL HORIZONTAL THROUGHBOARD CONN. ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsM50-3000345 M50-3530842 +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M50-4800745

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Length - Post	0.083 in
Contact Length - Post	2.11 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	1 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	5.65 mm
Insulation Height	0.222 "
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	14
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Shrouded - 4 Wall
Termination	Solder

M50-480 Series

Part	Connector Type	Number of Rows	Insulation Material	Termination	Contact Length - Post	Contact Length - Post	Row Spacing - Mating	Row Spacing - Mating	Pitch - Mating	Pitch - Mating	Contact Type	Contact Material	Current Rating (Amps)	Contact Finish - Post	Number of Positions Loaded	Number of Positions	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Shrouding	Material Flammability Rating	Fastening Type	Contact Finish - Mating	Insulation Color	Mounting Type
Harwin Inc. M50-4801545	Header	2	Liquid Crystal Polymer (LCP)	Solder	0.083 in	2.11 mm	0.05 in	1.27 mm	0.05 in	1.27 mm	Male Pin	Copper Alloy	1 A	Gold	All	30	Square	-40 °C	105 ░C	5.65 mm	0.222 "	Shrouded - 4 Wall	UL94 V-0	Push-Pull	Gold	Black	Through Hole Right Angle
Harwin Inc. M50-4800545	Header	2	Liquid Crystal Polymer (LCP)	Solder	0.083 in	2.11 mm	0.05 in	1.27 mm	0.05 in	1.27 mm	Male Pin	Copper Alloy	1 A	Gold	All	10	Square	-40 °C	105 ░C	5.65 mm	0.222 "	Shrouded - 4 Wall	UL94 V-0	Push-Pull	Gold	Black	Through Hole Right Angle
Harwin Inc. M50-4800745	Header	2	Liquid Crystal Polymer (LCP)	Solder	0.083 in	2.11 mm	0.05 in	1.27 mm	0.05 in	1.27 mm	Male Pin	Copper Alloy	1 A	Gold	All	14	Square	-40 °C	105 ░C	5.65 mm	0.222 "	Shrouded - 4 Wall	UL94 V-0	Push-Pull	Gold	Black	Through Hole Right Angle
Harwin Inc. M50-4802545	Header	2	Liquid Crystal Polymer (LCP)	Solder	0.083 in	2.11 mm	0.05 in	1.27 mm	0.05 in	1.27 mm	Male Pin	Copper Alloy	1 A	Gold	All	50	Square	-40 °C	105 ░C	5.65 mm	0.222 "	Shrouded - 4 Wall	UL94 V-0	Push-Pull	Gold	Black	Through Hole Right Angle
Harwin Inc. M50-4800645	Header	2	Liquid Crystal Polymer (LCP)	Solder	0.083 in	2.11 mm	0.05 in	1.27 mm	0.05 in	1.27 mm	Male Pin	Copper Alloy	1 A	Gold	All	12	Square	-40 °C	105 ░C	5.65 mm	0.222 "	Shrouded - 4 Wall	UL94 V-0	Push-Pull	Gold	Black	Through Hole Right Angle

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1000	$ 0.91
Newark	Each	250	$ 1.23
		500	$ 1.11
		1000	$ 0.99

Description

General part information

M50-480 Series

Connector Header Through Hole, Right Angle 14 position 0.050" (1.27mm)

Documents

Technical documentation and resources

M50-3000345

M50-3530842

M50,M52 Series Spec Sheet

Datasheet
