IRAUDAMP9

Unknown

Infineon Technologies

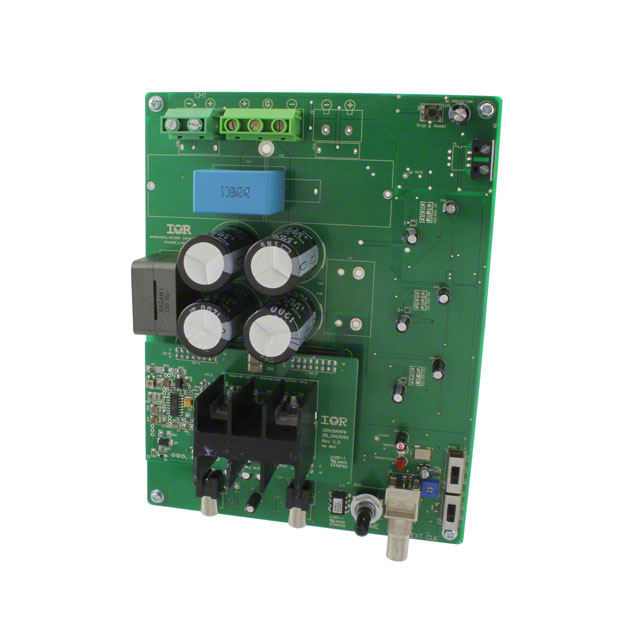

REFERENCE DESIGN BOARD - SINGLE-CHANNEL 1700 W (2 OHM) HALF-BRIDGE CLASS D AUDIO POWER AMPLIFIER

Search across all available documentation for this part.

Unknown

Infineon Technologies

REFERENCE DESIGN BOARD - SINGLE-CHANNEL 1700 W (2 OHM) HALF-BRIDGE CLASS D AUDIO POWER AMPLIFIER

Technical Specifications

Parameters and characteristics for this part

Specification	IRAUDAMP9

Board Type	Fully Populated
Max Output Power x Channels @ Load	1.7 kW
Max Output Power x Channels @ Load [custom]	1
Output Type	1-Channel (Mono)
Supplied Contents	Board(s)
Utilized IC / Part	IRS2092S, IRFB4227
Voltage - Supply [Max]	80 V
Voltage - Supply [Min]	-48 V

Part	Supplied Contents	Voltage - Supply [Min]	Voltage - Supply [Max]	Board Type	Max Output Power x Channels @ Load	Max Output Power x Channels @ Load [custom]	Utilized IC / Part	Output Type
Infineon Technologies IRAUDAMP9	Board(s)	-48 V	80 V	Fully Populated	1.7 kW	1	IRFB4227 IRS2092S	1-Channel (Mono)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 366.55

General part information

The reference design board IRAUDAMP9, 1-channel 1700 W half-bridge class D audio power amplifier is featuring theIRS2092Scontroller IC.

Technical documentation and resources
