1-103957-1
ActiveTE Connectivity AMP Connectors

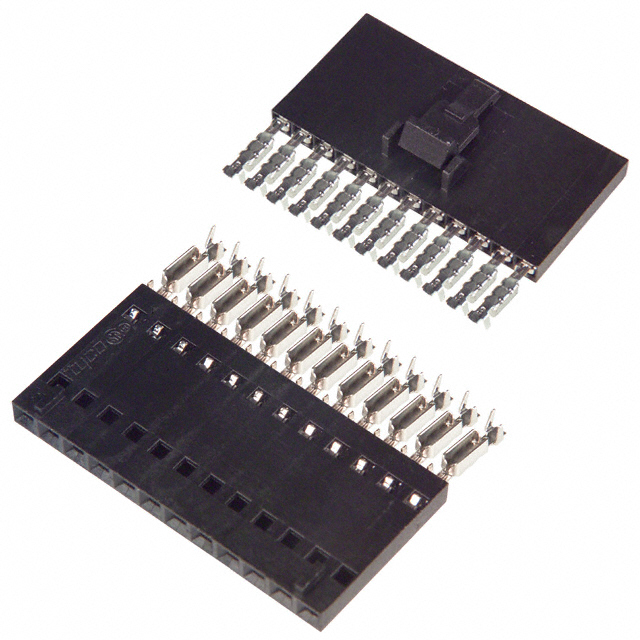

CONN RCPT 12P IDC 22-26AWG GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1-103957-1
ActiveTE Connectivity AMP Connectors
CONN RCPT 12P IDC 22-26AWG GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1-103957-1 | 103957 Series |
|---|---|---|
| Cable Termination | IDC | IDC |
| Color | Black | Black |
| Connector Type | Receptacle | Receptacle |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 15 µin | 15 µin |
| Contact Finish Thickness | 0.38 µm | 0.38 µm |
| Contact Type | Female Socket | Female Socket |
| Fastening Type | Latch Lock | Latch Lock |
| Features | Closed End | Closed End |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 12 | 4 - 12 |
| Number of Rows | 1 | 1 |
| Pitch [x] | 2.54 mm | 2.54 mm |
| Pitch [x] | 0.1 in | 0.1 in |
| Wire Gauge [Max] | 26 AWG | 26 AWG |
| Wire Gauge [Min] | 22 AWG | 22 AWG |
| Wire Type | Discrete or Ribbon Cable | Discrete or Ribbon Cable |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 2 | $ 2.28 | |
| 18 | $ 2.03 | |||
| 36 | $ 2.02 | |||
| 54 | $ 2.00 | |||
| 108 | $ 1.82 | |||
103957 Series
CONN RCPT 8POS IDC 22-26AWG GOLD
| Part | Fastening Type | Color | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Wire Gauge [Min] | Wire Gauge [Max] | Number of Rows | Mounting Type | Wire Type | Features | Number of Positions | Cable Termination | Connector Type | Pitch [x] | Pitch [x] | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 5-103957-7 | Latch Lock | Black | 15 µin | 0.38 µm | Gold | 22 AWG | 26 AWG | 1 | Free Hanging (In-Line) | Discrete or Ribbon Cable | Closed End | 8 | IDC | Receptacle | 2.54 mm | 0.1 in | Female Socket |
TE Connectivity AMP Connectors 103957-5 | Latch Lock | Black | 15 µin | 0.38 µm | Gold | 22 AWG | 26 AWG | 1 | Free Hanging (In-Line) | Discrete or Ribbon Cable | Closed End | 6 | IDC | Receptacle | 2.54 mm | 0.1 in | Female Socket |
TE Connectivity AMP Connectors 103957-9 | Latch Lock | Black | 15 µin | 0.38 µm | Gold | 22 AWG | 26 AWG | 1 | Free Hanging (In-Line) | Discrete or Ribbon Cable | Closed End | 10 | IDC | Receptacle | 2.54 mm | 0.1 in | Female Socket |
TE Connectivity AMP Connectors 1-103957-1 | Latch Lock | Black | 15 µin | 0.38 µm | Gold | 22 AWG | 26 AWG | 1 | Free Hanging (In-Line) | Discrete or Ribbon Cable | Closed End | 12 | IDC | Receptacle | 2.54 mm | 0.1 in | Female Socket |
TE Connectivity AMP Connectors 1-103957-7 | Latch Lock | Black | 15 µin | 0.38 µm | Gold | 22 AWG | 26 AWG | 1 | Free Hanging (In-Line) | Discrete or Ribbon Cable | Closed End | 8 | IDC | Receptacle | 2.54 mm | 0.1 in | Female Socket |
TE Connectivity AMP Connectors 1-103957-6 | Latch Lock | Black | 15 µin | 0.38 µm | Gold | 22 AWG | 26 AWG | 1 | Free Hanging (In-Line) | Discrete or Ribbon Cable | Closed End | 6 | IDC | Receptacle | 2.54 mm | 0.1 in | Female Socket |
TE Connectivity AMP Connectors 5-103957-8 | Latch Lock | Black | 15 µin | 0.38 µm | Gold | 22 AWG | 26 AWG | 1 | Free Hanging (In-Line) | Discrete or Ribbon Cable | Closed End | 9 | IDC | Receptacle | 2.54 mm | 0.1 in | Female Socket |
TE Connectivity AMP Connectors 5-103957-3 | Latch Lock | Black | 15 µin | 0.38 µm | Gold | 22 AWG | 26 AWG | 1 | Free Hanging (In-Line) | Discrete or Ribbon Cable | Closed End | 4 | IDC | Receptacle | 2.54 mm | 0.1 in | Female Socket |
TE Connectivity AMP Connectors 5-103957-2 | Latch Lock | Black | 15 µin | 0.38 µm | Gold | 22 AWG | 26 AWG | 1 | Free Hanging (In-Line) | Discrete or Ribbon Cable | Closed End | IDC | Receptacle | 2.54 mm | 0.1 in | Female Socket |
Description
General part information
103957 Series
12 Position Rectangular Receptacle Connector IDC Gold 22-26 AWG
