SL8801/12-111A5-00

Active

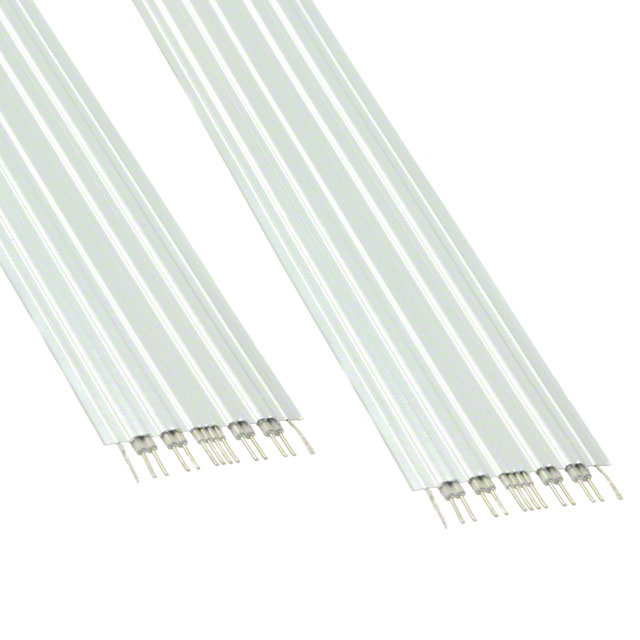

RIBBON CABLE, TWINAXIAL PAIRED FLEX FLAT, SHIELDED, 12 CONDUCTOR, 30 AWG, 500 FT, 152.4 M

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSL8803_04-10DN5-00 Custom Cuts Guide SL8801/12-111A5-00 Custom Cuts +2

SL8801/12-111A5-00

Active

RIBBON CABLE, TWINAXIAL PAIRED FLEX FLAT, SHIELDED, 12 CONDUCTOR, 30 AWG, 500 FT, 152.4 M

Deep-Dive with AI

DocumentsSL8803_04-10DN5-00 Custom Cuts Guide SL8801/12-111A5-00 Custom Cuts +2

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

SL8801 Series

Flat Ribbon Cable Silver 8 (4 Pair) Conductors 0.093" (2.37mm) Between Pairs Flat Twin Axial 1.00' (304.80mm)

Documents

Technical documentation and resources

Specification	SL8801/12-111A5-00	SL8801 Series

Cable Type	Flat Twin Axial	Flat Twin Axial
Conductor Material	Copper, Tinned	Copper, Silver Coated, Copper, Tinned
Conductor Strand	Solid	Solid
Features	Reversed, Opposite, Down, Straight	Reversed, Opposite, Down, Straight
Insulation Resistance	1 GOhms	1 GOhms
Jacket (Insulation) Material	Polyolefin (PO)	Polyolefin (PO)
Jacket Color	Silver	Silver
Length	7 in, 6 ", 9 in, 10 in, 8 in	6 - 10 in
Length	177.7 mm, 76.2 m, 152.4 mm, 15.24 m, 228.6 mm, 254 mm, 203.2 mm, 304.8 mm	7.62 - 304.8 m
Length	0.583 ft, 3000 ", 50 ft, 0.75 ft, 0.833 ft, 0.667 ft, 1 ft	0.583 - 6000 "
Length	0.5 '	0.5 '
Length [x]	0.917 ft, 10 ft, 100 ft, 1.33 ft, 1.17 ft	0.917 - 100 ft
Length [x]	11 "	11 "
Length [x]	279.4 mm, 3.05 m, 30.48 m, 406.4 mm, 355.62 mm	3.05 - 406.4 mm
Number of Conductors	8	8 - 10
Operating Temperature	-	-20 C
Operating Temperature	-	80 C
Pitch [x]	2.37 mm	2.37 - 2.4 mm
Pitch [x]	0.093 in	0.093 - 0.094 in
Ratings	UL E42769	UL E42769
Ribbon Thickness	0.89 mm	0.87 - 0.89 mm
Ribbon Thickness	0.035 in	0.034 - 0.035 in
Ribbon Width	15.93 mm	15.1 - 15.93 mm
Ribbon Width	0.627 in	0.594 - 0.627 in
Ribbon Width	-	15.6 mm
Ribbon Width	-	0.614 in
Shielding	Shielded	Shielded
Voltage	150 V	150 V
Wire Gauge	30 AWG	30 AWG

Part	Number of Conductors	Length	Length	Length	Wire Gauge	Length [x]	Length [x]	Features	Ratings	Ribbon Thickness	Ribbon Thickness	Conductor Material	Voltage	Jacket (Insulation) Material	Ribbon Width [y]	Ribbon Width [y]	Cable Type	Pitch [x]	Pitch [x]	Jacket Color	Length	Conductor Strand	Length [x]	Insulation Resistance	Shielding	Ribbon Width	Ribbon Width	Operating Temperature [Min]	Operating Temperature [Max]
3M SL8801/12-10DA5-00	8	76.2 m, 152.4 mm, 177.7 mm, 203.2 mm, 228.6 mm, 254 mm, 304.8 mm	0.583 ft, 0.667 ft, 0.75 ft, 0.833 ft, 1 ft, 3000 "	6 ", 7 in, 8 in, 9 in, 10 in	30 AWG	30.48 m, 279.4 mm, 355.62 mm, 406.4 mm	0.917 ft, 1.17 ft, 1.33 ft, 100 ft	Down, Opposite, Reversed, Straight	UL E42769	0.89 mm	0.035 in	Copper, Silver Coated	150 V	Polyolefin (PO)	15.6 mm	0.614 in	Flat Twin Axial	2.37 mm	0.093 in	Silver	0.5 '	Solid	11 "	1 GOhms	Shielded
3M SL8801/12-101A5-00	8	7.62 m, 15.24 m, 76.2 m, 152.4 m	25 ft, 50 ft, 3000 ", 6000 in		30 AWG				UL E42769	0.89 mm	0.035 in	Copper, Silver Coated	150 V	Polyolefin (PO)			Flat Twin Axial	2.37 mm	0.093 in	Silver		Solid		1 GOhms	Shielded	15.93 mm	0.627 in
3M SL8801/12-111A5-00	8	15.24 m, 76.2 m, 152.4 mm, 177.7 mm, 203.2 mm, 228.6 mm, 254 mm, 304.8 mm	0.583 ft, 0.667 ft, 0.75 ft, 0.833 ft, 1 ft, 50 ft, 3000 "	6 ", 7 in, 8 in, 9 in, 10 in	30 AWG	3.05 m, 30.48 m, 279.4 mm, 355.62 mm, 406.4 mm	0.917 ft, 1.17 ft, 1.33 ft, 10 ft, 100 ft	Down, Opposite, Reversed, Straight	UL E42769	0.89 mm	0.035 in	Copper, Tinned	150 V	Polyolefin (PO)			Flat Twin Axial	2.37 mm	0.093 in	Silver	0.5 '	Solid	11 "	1 GOhms	Shielded	15.93 mm	0.627 in
3M SL8801/11-11DA5-00	10	91.44 m	300 ft		30 AWG					0.87 mm	0.034 in	Copper, Tinned	150 V	Polyolefin (PO)			Flat Twin Axial	2.4 mm	0.094 in	Silver		Solid		1 GOhms	Shielded	15.1 mm	0.594 in	-20 C	80 C
