Description
General part information

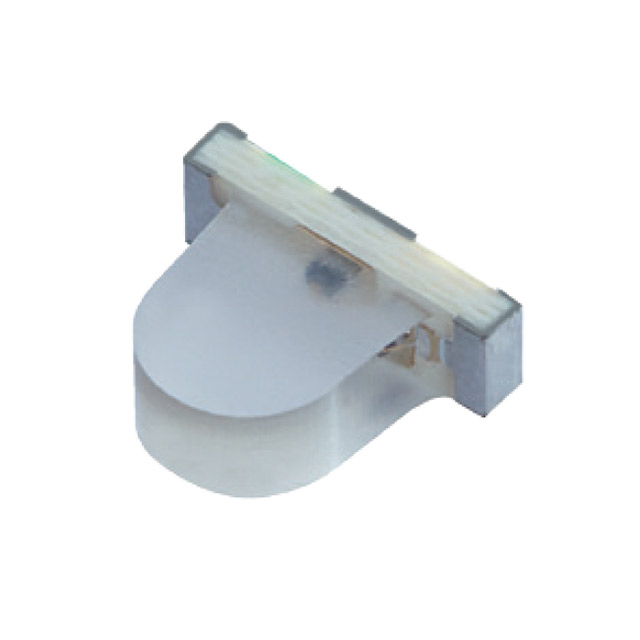

XZMOK56 Series
Orange 601nm LED Indication - Discrete 2.1V 2-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | XZMOK56W-1 |
|---|---|
| Color | Orange |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) | 1 mm |
| Lens Color | Colorless |
| Lens Diameter | 2 mm |
| Lens Style | Round, Domed Top |
| Lens Transparency | Clear |
| Millicandela Rating | 377 mcd |
| Mounting Type | Right Angle, Surface Mount |
| Package / Case | No Lead, 2-SMD |
| Package Name | 2-SMD |
| Size / Dimension Length | 3 mm |
| Size / Dimension Width | 2.5 mm |
| Viewing Angle | 30 ° |
| Voltage - Forward (Vf) (Typ) | 2.1 V |
| Wavelength - Dominant | 601 nm |
| Wavelength - Peak | 610 nm |
