4620-832-SS
ActiveRAF Electronic Hardware
3/8 HEX X 1/4 LENGTH
Deep-Dive with AI
Search across all available documentation for this part.
4620-832-SS
ActiveRAF Electronic Hardware
3/8 HEX X 1/4 LENGTH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 4620-832-SS |
|---|---|
| Between Board Height | 6.35 mm |
| Between Board Height | 0.25 in |
| Between Board Height | 0.25 in |
| Diameter - Outside [diameter] | 0.375 in |
| Diameter - Outside [diameter] | 0.375 in |
| Diameter - Outside [diameter] | 9.53 mm |
| Gender | Female |
| Length - Overall [x] | 0.25 in |
| Length - Overall [x] | 6.35 mm |
| Length - Overall [x] | 0.25 in |
| Material | Stainless Steel |
| Screw, Thread Size | #8-32 |
| Threaded/Unthreaded | Threaded |
| Type | Hex Standoff |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.52 | |
| 5 | $ 4.30 | |||
| 10 | $ 4.18 | |||
| 25 | $ 4.07 | |||
| 50 | $ 3.96 | |||
| 100 | $ 3.73 | |||
Description
General part information
4620-832 Series

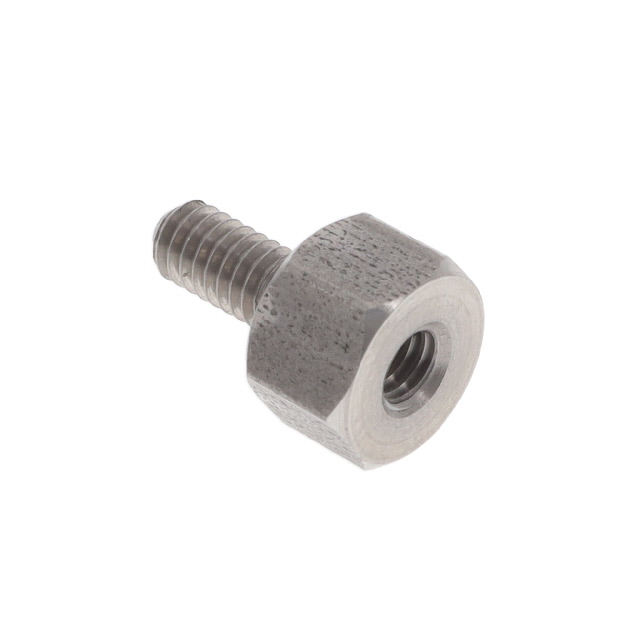

Hex Standoff Threaded #8-32 Stainless Steel 0.250" (6.35mm) 1/4"
Documents
Technical documentation and resources
No documents available
