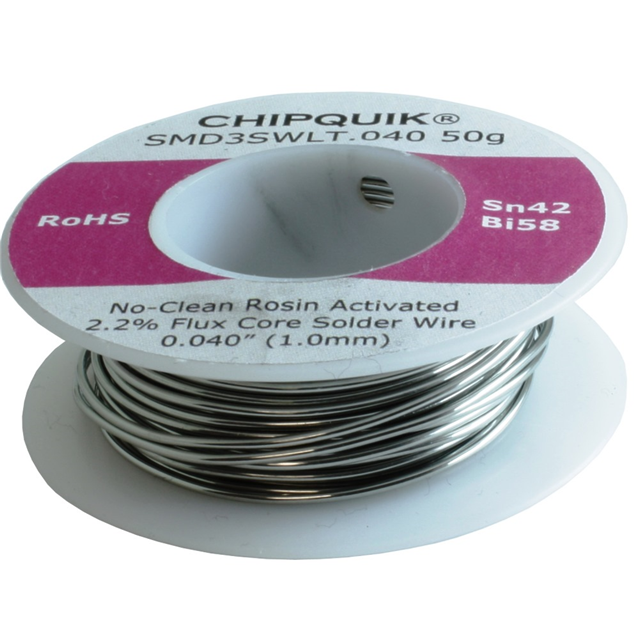

SMD3SWLT.040 50G

Active

Chip Quik Inc.

SN42/BI58 2.2% FLUX CORE SOLDER

Search across all available documentation for this part.

Active

Chip Quik Inc.

SN42/BI58 2.2% FLUX CORE SOLDER

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 70.95

General part information

Lead Free No-Clean, Rosin Activated (RA) Wire Solder Bi58Sn42 (58/42) Spool, 1.8 oz (50g)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	SMD3SWLT.040 50G	SMD3S Series

Composition	Bi58Sn42 (58/42)	Bi58Sn42 (58/42), Sn62Pb36Ag2 (62/36/2)
Diameter [diameter]	1.02 mm	1.02 - 1.19 mm
Diameter [diameter]	0.04 in	0.04 - 0.047 in
Flux Type	No-Clean, Rosin Activated (RA)	No-Clean, Rosin Activated (RA), Water Soluble, No-Clean
Form	Spool	Spool
Form	1.8 oz	0.5 - 8 oz
Form	50 g	0.35 - 227 g
Form	-	10 g
Melting Point [custom]	138 °C	138 - 179 °C
Melting Point [custom]	280 °F	280 - 354 °F
Process	-	Leaded
Type	Wire Solder	Wire Solder

SOLDER WIRE SN42/BI58 .047" 4OZ

Part	Composition	Diameter [diameter]	Diameter [diameter]	Type	Melting Point [custom]	Melting Point [custom]	Form	Form	Form	Form	Flux Type	Process
Chip Quik Inc. SMD3SWLT.047 4OZ	Bi58Sn42 (58/42)	1.19 mm	0.047 in	Wire Solder	138 °C	280 °F	Spool	4 oz	113.4 g
Chip Quik Inc. SMD3SWLT.040 10G	Bi58Sn42 (58/42)	1.02 mm	0.04 in	Wire Solder	138 °C	280 °F	Spool		0.35 oz	10 g	No-Clean, Rosin Activated (RA)
Chip Quik Inc. SMD3SWLT.047 8OZ	Bi58Sn42 (58/42)	1.19 mm	0.047 in	Wire Solder	138 °C	280 °F	Spool	0.5 lb, 8 oz	227 g
Chip Quik Inc. SMD3SW.031 1OZ	Sn62Pb36Ag2 (62/36/2)			Wire Solder	179 °C	354 °F	Spool	1 oz	28.35 g		No-Clean, Water Soluble	Leaded
Chip Quik Inc. SMD3SWLT.047 1OZ	Bi58Sn42 (58/42)	1.19 mm	0.047 in	Wire Solder	138 °C	280 °F	Spool	1 oz	28.35 g
Chip Quik Inc. SMD3SWLT.047 2OZ	Bi58Sn42 (58/42)	1.19 mm	0.047 in	Wire Solder	138 °C	280 °F	Spool	2 oz	56.7 g
Chip Quik Inc. SMD3SWLT.040 50G	Bi58Sn42 (58/42)	1.02 mm	0.04 in	Wire Solder	138 °C	280 °F	Spool	1.8 oz	50 g		No-Clean, Rosin Activated (RA)
Chip Quik Inc. SMD3SWLT.040 20G	Bi58Sn42 (58/42)	1.02 mm	0.04 in	Wire Solder	138 °C	280 °F	Spool	0.7 oz	20 g		No-Clean, Rosin Activated (RA)
Chip Quik Inc. SMD3SWLT.040 100G	Bi58Sn42 (58/42)	1.02 mm	0.04 in	Wire Solder	138 °C	280 °F	Spool	3.53 oz	100 g		No-Clean, Rosin Activated (RA)
