PEN.0M.303.XLMT
ActiveLEMO

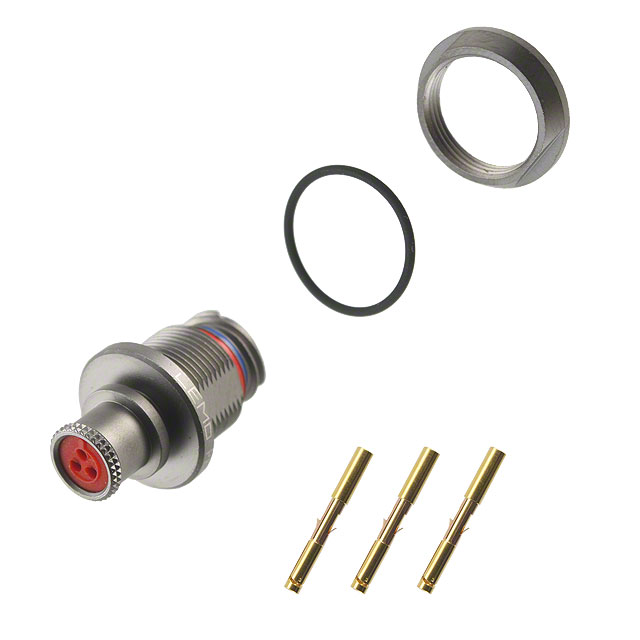

CONN RCPT FMALE 3POS GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
PEN.0M.303.XLMT
ActiveLEMO
CONN RCPT FMALE 3POS GOLD CRIMP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | PEN.0M.303.XLMT | PEN.0M Series |
|---|---|---|
| Applications | Military, Aerospace, Automotive, Aviation | Military, Aerospace, Automotive, Aviation |
| Cable Opening [diameter] | 8 mm | 8 mm |
| Cable Opening [diameter] | 0.315 in | 0.315 in |
| Color | Gray | Gray |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 59 Áin | 59 Áin |
| Contact Finish Thickness - Mating | 1.5 Ám | 1.5 Ám |
| Contact Material | Bronze | Bronze |
| Current Rating (Amps) | 8 A | 6.5 - 10 A |
| Ingress Protection | IP68 - Dust Tight, Waterproof | IP68 - Dust Tight, Waterproof |
| Insert Material | Polyetheretherketone (PEEK) | Polyetheretherketone (PEEK) |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut |
| Number of Positions | - | 2 - 4 |
| Operating Temperature [Max] | 200 °C | 200 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | N | N |
| Primary Material | Metal | Metal |
| Shell Finish | Nickel | Nickel |
| Shell Material | Aluminum Alloy | Aluminum Alloy |
| Shell Size - Insert | 303 | 302 - 305 |
| Shielding | Shielded | Shielded |
| Termination | Crimp | Crimp |
PEN.0M Series
CONN RCPT FMALE 4POS GOLD CRIMP
| Part | Connector Type | Current Rating (Amps) | Orientation | Color | Shell Finish | Applications | Number of Positions | Primary Material | Shielding | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Shell Size - Insert | Contact Material | Ingress Protection | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Shell Material | Insert Material | Contact Finish - Mating | Mounting Feature | Cable Opening [diameter] | Cable Opening [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO PEN.0M.304.XLMT | Receptacle, Female Sockets | 7 A | N | Gray | Nickel | Aerospace, Automotive, Aviation, Military | 4 | Metal | Shielded | 59 Áin | 1.5 Ám | 304 | Bronze | IP68 - Dust Tight, Waterproof | Crimp | -55 °C | 200 °C | Aluminum Alloy | Polyetheretherketone (PEEK) | Gold | Bulkhead - Front Side Nut | 8 mm | 0.315 in |
LEMO PEN.0M.303.XLMT | Receptacle, Female Sockets | 8 A | N | Gray | Nickel | Aerospace, Automotive, Aviation, Military | Metal | Shielded | 59 Áin | 1.5 Ám | 303 | Bronze | IP68 - Dust Tight, Waterproof | Crimp | -55 °C | 200 °C | Aluminum Alloy | Polyetheretherketone (PEEK) | Gold | Bulkhead - Front Side Nut | 8 mm | 0.315 in | |
LEMO PEN.0M.305.XLMT | Receptacle, Female Sockets | 6.5 A | N | Gray | Nickel | Aerospace, Automotive, Aviation, Military | Metal | Shielded | 59 Áin | 1.5 Ám | 305 | Bronze | IP68 - Dust Tight, Waterproof | Crimp | -55 °C | 200 °C | Aluminum Alloy | Polyetheretherketone (PEEK) | Gold | Bulkhead - Front Side Nut | 8 mm | 0.315 in | |
LEMO PEN.0M.302.XLMT | Receptacle, Female Sockets | 10 A | N | Gray | Nickel | Aerospace, Automotive, Aviation, Military | 2 | Metal | Shielded | 59 Áin | 1.5 Ám | 302 | Bronze | IP68 - Dust Tight, Waterproof | Crimp | -55 °C | 200 °C | Aluminum Alloy | Polyetheretherketone (PEEK) | Gold | Bulkhead - Front Side Nut | 8 mm | 0.315 in |
