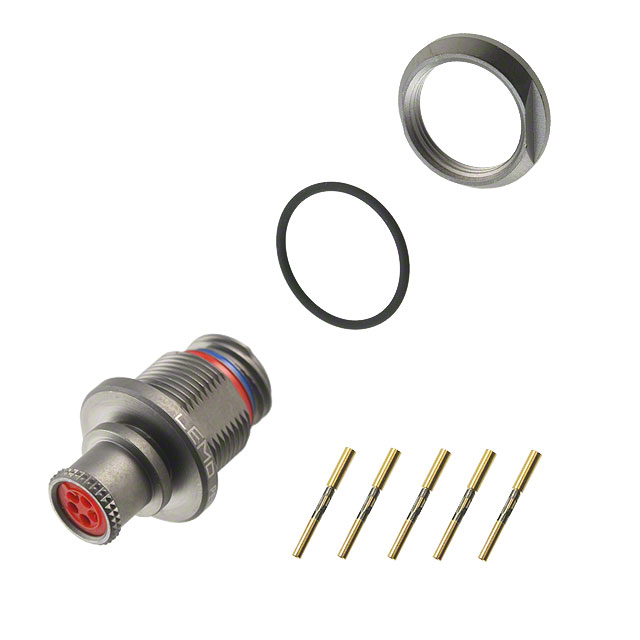

CONN RCPT FMALE 5POS GOLD CRIMP

Search across all available documentation for this part.

Active

LEMO

CONN RCPT FMALE 5POS GOLD CRIMP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Circular Connector Receptacle, Female Sockets Crimp

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	PEN.0M.305.XLMT	PEN.0M Series

Applications	Military, Aerospace, Automotive, Aviation	Military, Aerospace, Automotive, Aviation
Cable Opening [diameter]	8 mm	8 mm
Cable Opening [diameter]	0.315 in	0.315 in
Color	Gray	Gray
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	59 Áin	59 Áin
Contact Finish Thickness - Mating	1.5 Ám	1.5 Ám
Contact Material	Bronze	Bronze
Current Rating (Amps)	6.5 A	6.5 - 10 A
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Number of Positions	-	2 - 4
Operating Temperature [Max]	200 °C	200 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	N	N
Primary Material	Metal	Metal
Shell Finish	Nickel	Nickel
Shell Material	Aluminum Alloy	Aluminum Alloy
Shell Size - Insert	305	302 - 305
Shielding	Shielded	Shielded
Termination	Crimp	Crimp

CONN RCPT FMALE 4POS GOLD CRIMP

Part	Connector Type	Current Rating (Amps)	Orientation	Color	Shell Finish	Applications	Number of Positions	Primary Material	Shielding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Size - Insert	Contact Material	Ingress Protection	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Shell Material	Insert Material	Contact Finish - Mating	Mounting Feature	Cable Opening [diameter]	Cable Opening [diameter]
LEMO PEN.0M.304.XLMT	Receptacle, Female Sockets	7 A	N	Gray	Nickel	Aerospace, Automotive, Aviation, Military	4	Metal	Shielded	59 Áin	1.5 Ám	304	Bronze	IP68 - Dust Tight, Waterproof	Crimp	-55 °C	200 °C	Aluminum Alloy	Polyetheretherketone (PEEK)	Gold	Bulkhead - Front Side Nut	8 mm	0.315 in
LEMO PEN.0M.303.XLMT	Receptacle, Female Sockets	8 A	N	Gray	Nickel	Aerospace, Automotive, Aviation, Military		Metal	Shielded	59 Áin	1.5 Ám	303	Bronze	IP68 - Dust Tight, Waterproof	Crimp	-55 °C	200 °C	Aluminum Alloy	Polyetheretherketone (PEEK)	Gold	Bulkhead - Front Side Nut	8 mm	0.315 in
LEMO PEN.0M.305.XLMT	Receptacle, Female Sockets	6.5 A	N	Gray	Nickel	Aerospace, Automotive, Aviation, Military		Metal	Shielded	59 Áin	1.5 Ám	305	Bronze	IP68 - Dust Tight, Waterproof	Crimp	-55 °C	200 °C	Aluminum Alloy	Polyetheretherketone (PEEK)	Gold	Bulkhead - Front Side Nut	8 mm	0.315 in
LEMO PEN.0M.302.XLMT	Receptacle, Female Sockets	10 A	N	Gray	Nickel	Aerospace, Automotive, Aviation, Military	2	Metal	Shielded	59 Áin	1.5 Ám	302	Bronze	IP68 - Dust Tight, Waterproof	Crimp	-55 °C	200 °C	Aluminum Alloy	Polyetheretherketone (PEEK)	Gold	Bulkhead - Front Side Nut	8 mm	0.315 in
