74LV574PW,112
ActiveNXP USA Inc.

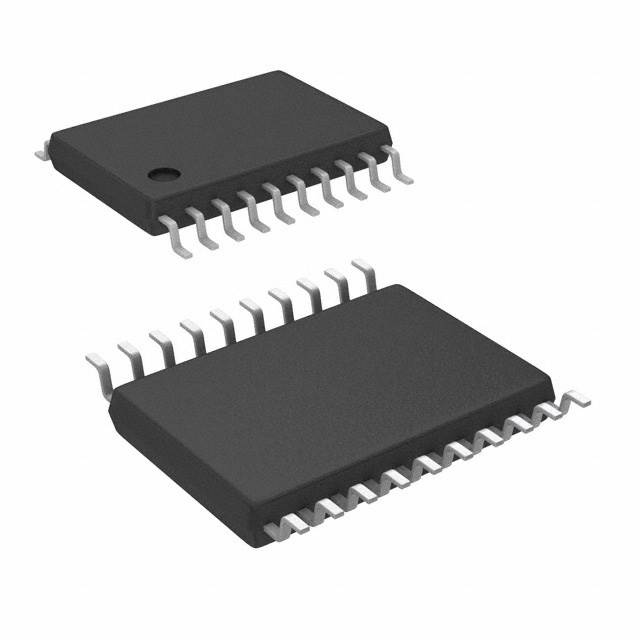

IC FF D-TYPE SNGL 8BIT 20TSSOP
Deep-Dive with AI
Search across all available documentation for this part.
74LV574PW,112
ActiveNXP USA Inc.
IC FF D-TYPE SNGL 8BIT 20TSSOP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 74LV574PW,112 | 74LV574 Series |
|---|---|---|
| Clock Frequency | 70 MHz | 70 MHz |
| Current - Output High, Low [custom] | 16 mA | 16 mA |
| Current - Output High, Low [custom] | 16 mA | 16 mA |
| Current - Quiescent (Iq) | 160 µA | 20 - 160 çA |
| Function | Standard | Standard |
| Input Capacitance | 3.5 pF | 3.5 pF |
| Max Propagation Delay @ V, Max CL | 17 ns | 17 ns |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Bits per Element | 8 | 8 |
| Number of Elements [custom] | 1 | 1 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Output Type | Tri-State, Non-Inverted | Tri-State, Non-Inverted |
| Package / Case | 0.173 in | 0.173 - 7.5 mm |
| Package / Case | 4.4 mm | 4.4 mm |
| Package / Case | 20-TSSOP | 20-SOIC, 20-TSSOP, 20-SSOP |
| Supplier Device Package | 20-TSSOP | 20-SO, 20-TSSOP, 20-SSOP |
| Trigger Type | Positive Edge | Positive Edge |
| Type | D-Type | D-Type |
| Voltage - Supply [Max] | 5.5 V | 5.5 V |
| Voltage - Supply [Min] | 1 V | 1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
74LV574 Series
IC FF D-TYPE SNGL 8BIT 20SO
| Part | Number of Elements [custom] | Trigger Type | Current - Quiescent (Iq) | Function | Package / Case | Package / Case | Supplier Device Package | Operating Temperature [Min] | Operating Temperature [Max] | Type | Mounting Type | Clock Frequency | Current - Output High, Low [custom] | Current - Output High, Low [custom] | Voltage - Supply [Min] | Voltage - Supply [Max] | Number of Bits per Element | Output Type | Max Propagation Delay @ V, Max CL | Input Capacitance | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
NXP USA Inc. 74LV574D,118Flip Flop 1 Element D-Type 8 Bit Positive Edge 20-SOIC (0.295", 7.50mm Width) | 1 | Positive Edge | 20 çA | Standard | 0.295 in, 7.5 mm | 20-SOIC | 20-SO | -40 °C | 125 °C | D-Type | Surface Mount | 70 MHz | 16 mA | 16 mA | 1 V | 5.5 V | 8 | Tri-State, Non-Inverted | 17 ns | 3.5 pF | |
NXP USA Inc. 74LV574PW,112Flip Flop 1 Element D-Type 8 Bit Positive Edge 20-TSSOP (0.173", 4.40mm Width) | 1 | Positive Edge | 160 µA | Standard | 0.173 in | 20-TSSOP | 20-TSSOP | -40 °C | 125 °C | D-Type | Surface Mount | 70 MHz | 16 mA | 16 mA | 1 V | 5.5 V | 8 | Tri-State, Non-Inverted | 17 ns | 3.5 pF | 4.4 mm |
NXP USA Inc. 74LV574DB,112Flip Flop 1 Element D-Type 8 Bit Positive Edge 20-SSOP (0.209", 5.30mm Width) | 1 | Positive Edge | 20 çA | Standard | 0.209 in, 5.3 mm | 20-SSOP | 20-SSOP | -40 °C | 125 °C | D-Type | Surface Mount | 70 MHz | 16 mA | 16 mA | 1 V | 5.5 V | 8 | Tri-State, Non-Inverted | 17 ns | 3.5 pF |
Description
General part information
74LV574 Series
Flip Flop 1 Element D-Type 8 Bit Positive Edge 20-TSSOP (0.173", 4.40mm Width)
