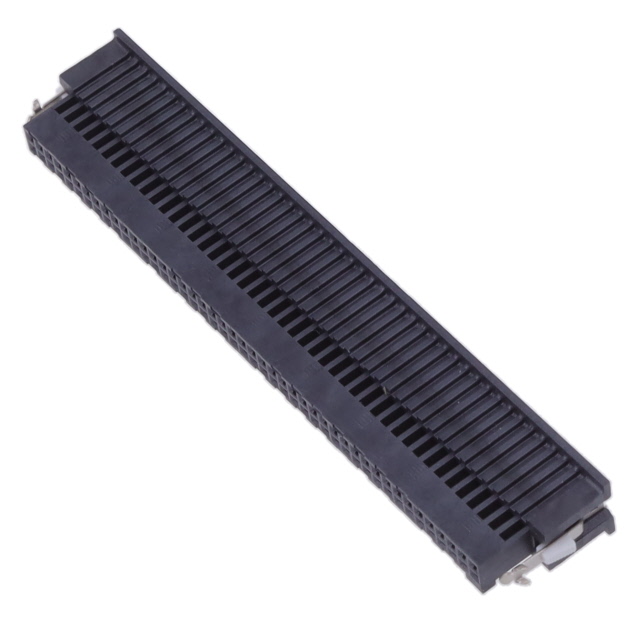

ISDF-45-D-M

Active

Samtec Inc.

CONN HOUSING RCP 90 POS 1.27MM CRIMP ST CABLE MOUNT BLACK TIGER EYE™

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HOUSING RCP 90 POS 1.27MM CRIMP ST CABLE MOUNT BLACK TIGER EYE™

Technical Specifications

Parameters and characteristics for this part

Part	Note	Contact Termination	Number of Rows	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Color	Pitch [x]	Pitch [x]	Fastening Type	Insulation Material	Mounting Type	Features	Connector Type	Contact Type	Row Spacing	Row Spacing
Samtec Inc. ISDF-45-S-M	Contacts Not Included	Crimp	1	45	-55 °C	125 °C	Black	0.05 in	1.27 mm	Latch Lock	Liquid Crystal Polymer (LCP)	Free Hanging (In-Line)	Retention Latches	Insulator	Female Socket
Samtec Inc. ISDF-45-D	Contacts Not Included	Crimp	2	90	-55 °C	125 °C	Black	0.05 in	1.27 mm	Latch Lock	Liquid Crystal Polymer (LCP)	Free Hanging (In-Line)		Insulator	Female Socket	1.27 mm	0.05 in
Samtec Inc. ISDF-45-D-M	Contacts Not Included	Crimp	2	90	-55 °C	125 °C	Black	0.05 in	1.27 mm	Latch Lock	Liquid Crystal Polymer (LCP)	Free Hanging (In-Line)	Retention Latches	Insulator	Female Socket	1.27 mm	0.05 in
Samtec Inc. ISDF-45-S-R	Contacts Not Included	Crimp	1	45	-55 °C	125 °C	Black	0.05 in	1.27 mm	Latch Lock	Liquid Crystal Polymer (LCP)	Free Hanging (In-Line)		Insulator	Female Socket

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

90 Rectangular Connectors - Housings Insulator Black 0.050" (1.27mm)
