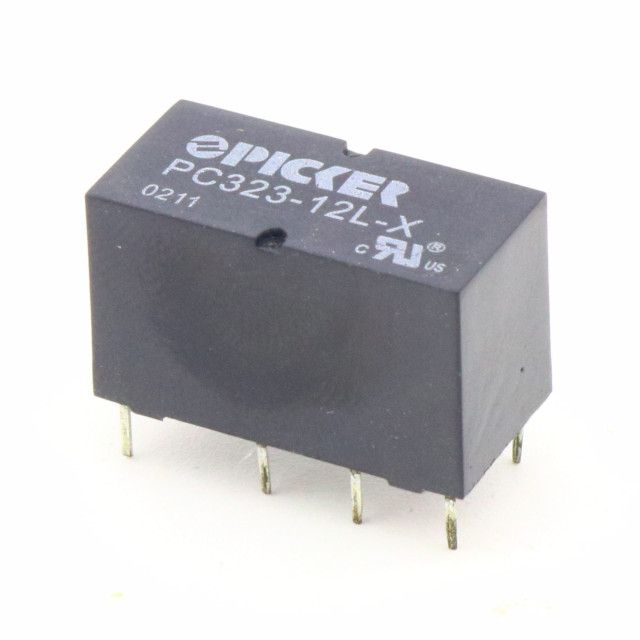

PC323-12L-X

Active

Picker Components

RELAY TELECOM DPDT 2A 12V

Search across all available documentation for this part.

Active

Picker Components

RELAY TELECOM DPDT 2A 12V

Technical Specifications

Parameters and characteristics for this part

RELAY TELECOM DPDT 2A 12V

Part	Load - Max Switching	Operate Time	Relay Type	Contact Rating (Current)	Contact Form	Coil Resistance	Coil Insulation	Mounting Type	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Coil Voltage	Release Time	Must Operate Voltage	Coil Type	Must Release Voltage	Switching Voltage	Termination Style
Picker Components PC323-12L-X	144 W, 750 VA	4.5 ms	Telecom	3 A	DPDT (2 Form C)	960 Ohms	Class B	Through Hole	Gold (Au), Silver Nickel (AgNi)	85 °C	-40 °C	12 VDC	1.5 ms	9 VDC	Non Latching	1.2 VDC	48 VDC, 250 VAC	PC Pin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Telecom Relay DPDT (2 Form C) 12VDC Coil Through Hole
