H4PXS-1618G
ActiveAssmann WSW Components
DIP CABLE - HDP16S/AE16G/X
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
H4PXS-1618G
ActiveAssmann WSW Components
DIP CABLE - HDP16S/AE16G/X
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | H4PXS-1618G |
|---|---|
| Cable Termination | IDC |
| Connector Type | DIP to Cable |
| Contact Finish | Tin |
| Length [x] | 457.2 mm |
| Length [x] | 1.5 ft |
| Number of Positions | 16 |
| Number of Rows | 2 |
| Pitch - Cable | 0.05 " |
| Pitch - Cable | 1.27 mm |
| Pitch - Connector | 0.1 in |
| Pitch - Connector | 2.54 mm |
| Shielding | Unshielded |
| Usage | Socket (0.3"), Board In |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.05 | |
| 10 | $ 1.79 | |||
| 25 | $ 1.71 | |||
| 50 | $ 1.67 | |||
| 100 | $ 1.60 | |||
| 250 | $ 1.44 | |||
| 500 | $ 1.33 | |||
| 1000 | $ 1.14 | |||
| 2500 | $ 1.06 | |||
Description
General part information
H4PXS-16 Series

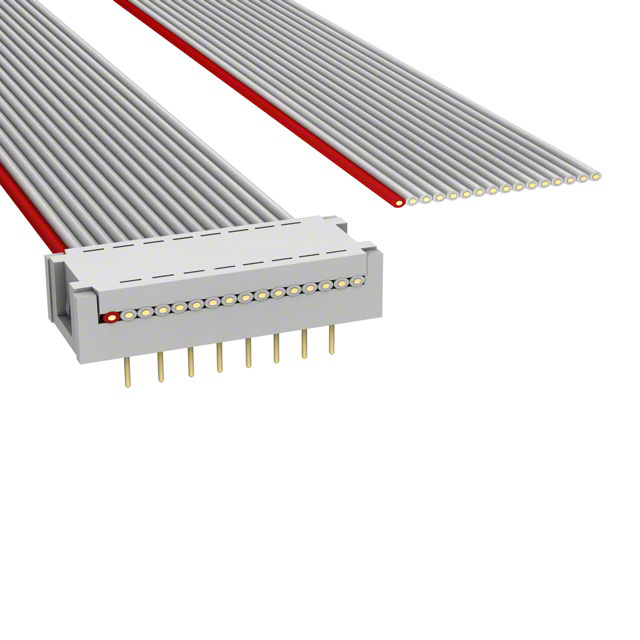

16 Position Cable Assembly Rectangular DIP to Cable 1.50' (457.20mm)
