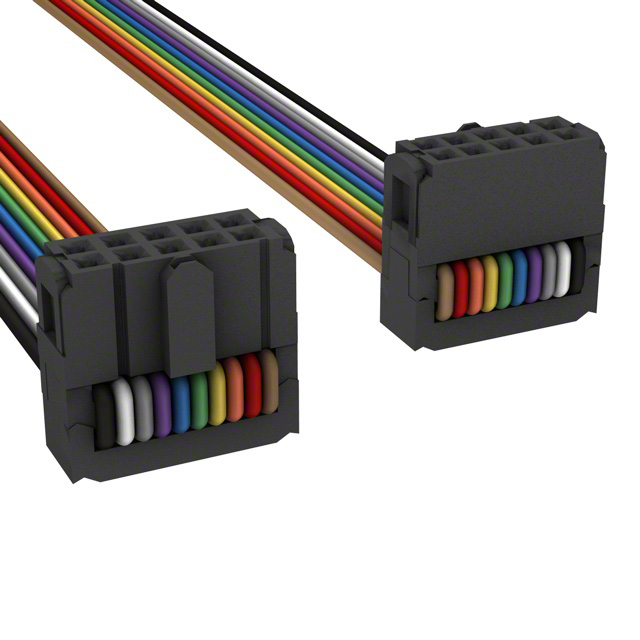

Specification	A3DDB-1018M

Cable Termination	IDC
Color	Multiple, Ribbon
Connector Type	Socket to Socket
Contact Finish	Gold
Contact Finish Thickness	30 µin
Features	Strain Relief, Polarizing Key
Length	1.5 ft
Number of Positions	10
Number of Rows	2
Pitch - Cable	0.05 in
Pitch - Connector	0.1 in
Shielding	Unshielded

A3DDB Series

Part	Length	Number of Positions	Pitch - Cable	Number of Rows	Contact Finish Thickness	Color	Contact Finish	Features	Connector Type	Shielding	Pitch - Connector	Cable Termination
TE Connectivity AMP Connectors A3DDB-1018G	1.5 ft	10	0.05 in	2	30 µin	Gray Ribbon	Gold	Polarizing Key Strain Relief	Socket to Socket	Unshielded	0.1 in	IDC
TE Connectivity AMP Connectors A3DDB-4018M	1.5 ft	40	0.05 in	2	30 µin	Multiple Ribbon	Gold	Polarizing Key Strain Relief	Socket to Socket	Unshielded	0.1 in	IDC
TE Connectivity AMP Connectors A3DDB-3406M	0.5 ft	34	0.05 in	2	30 µin	Multiple Ribbon	Gold	Polarizing Key Strain Relief	Socket to Socket	Unshielded	0.1 in	IDC
TE Connectivity AMP Connectors A3DDB-4406M	0.5 ft	44	0.05 in	2	30 µin	Multiple Ribbon	Gold	Polarizing Key Strain Relief	Socket to Socket	Unshielded	0.1 in	IDC
TE Connectivity AMP Connectors A3DDB-3436G	3 ft	34	0.05 in	2	30 µin	Gray Ribbon	Gold	Polarizing Key Strain Relief	Socket to Socket	Unshielded	0.1 in	IDC
TE Connectivity AMP Connectors A3DDB-2018G	1.5 ft	20	0.05 in	2	30 µin	Gray Ribbon	Gold	Polarizing Key Strain Relief	Socket to Socket	Unshielded	0.1 in	IDC
TE Connectivity AMP Connectors A3DDB-2018M	1.5 ft	20	0.05 in	2	30 µin	Multiple Ribbon	Gold	Polarizing Key Strain Relief	Socket to Socket	Unshielded	0.1 in	IDC
TE Connectivity AMP Connectors A3DDB-4436G	3 ft	44	0.05 in	2	30 µin	Gray Ribbon	Gold	Polarizing Key Strain Relief	Socket to Socket	Unshielded	0.1 in	IDC
TE Connectivity AMP Connectors A3DDB-1436M	3 ft	14	0.05 in	2	30 µin	Multiple Ribbon	Gold	Polarizing Key Strain Relief	Socket to Socket	Unshielded	0.1 in	IDC
TE Connectivity AMP Connectors A3DDB-4006M	0.5 ft	40	0.05 in	2	30 µin	Multiple Ribbon	Gold	Polarizing Key Strain Relief	Socket to Socket	Unshielded	0.1 in	IDC
