A3DDB Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

IDC CABLE- AKR10B/AE10G/AKR10B

Part	Cable Termination	Shielding	Number of Rows	Contact Finish	Features	Connector Type	Pitch - Connector	Pitch - Connector	Pitch - Cable	Pitch - Cable	Contact Finish Thickness	Contact Finish Thickness	Length [x]	Length [x]	Number of Positions	Color	Length	Length	Length

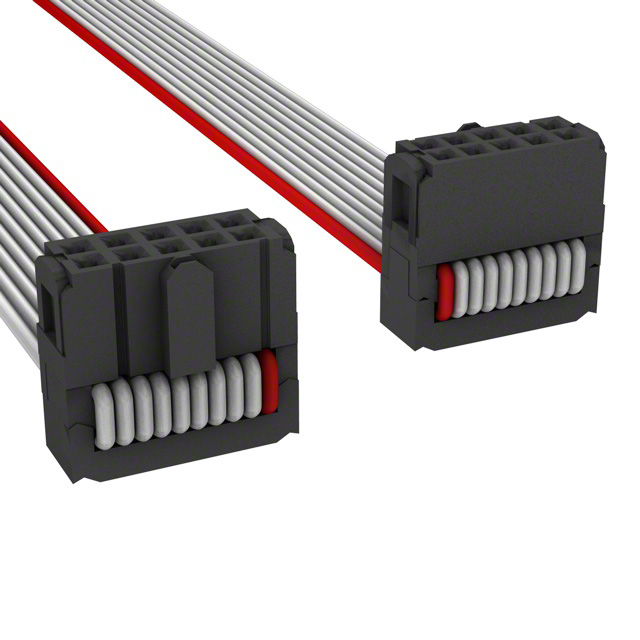

TE Connectivity Raychem Cable Protection A3DDB-1018G	IDC	Unshielded	2	Gold	Polarizing Key Strain Relief	Socket to Socket	0.1 in	2.54 mm	0.05 "	1.27 mm	0.76 Ám	30 Áin	457.2 mm	1.5 ft	10
TE Connectivity Raychem Cable Protection A3DDB-4018M	IDC	Unshielded	2	Gold	Polarizing Key Strain Relief	Socket to Socket	0.1 in	2.54 mm	0.05 "	1.27 mm	0.76 Ám	30 Áin	457.2 mm	1.5 ft	40	Multiple Ribbon
TE Connectivity Raychem Cable Protection A3DDB-3406M	IDC	Unshielded	2	Gold	Polarizing Key Strain Relief	Socket to Socket	0.1 in	2.54 mm	0.05 "	1.27 mm	0.76 Ám	30 Áin			34	Multiple Ribbon	152.4 mm	6 "	0.5 '
TE Connectivity Raychem Cable Protection A3DDB-4406M	IDC	Unshielded	2	Gold	Polarizing Key Strain Relief	Socket to Socket	0.1 in	2.54 mm	0.05 "	1.27 mm	0.76 Ám	30 Áin			44	Multiple Ribbon	152.4 mm	6 "	0.5 '

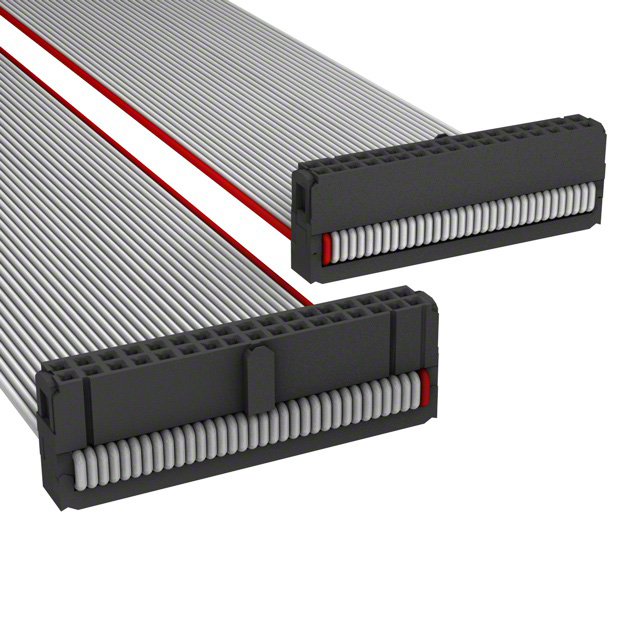

TE Connectivity Raychem Cable Protection A3DDB-3436G	IDC	Unshielded	2	Gold	Polarizing Key Strain Relief	Socket to Socket	0.1 in	2.54 mm	0.05 "	1.27 mm	0.76 Ám	30 Áin	914.4 mm	3 ft	34
TE Connectivity Raychem Cable Protection A3DDB-2018M	IDC	Unshielded	2	Gold	Polarizing Key Strain Relief	Socket to Socket	0.1 in	2.54 mm	0.05 "	1.27 mm	0.76 Ám	30 Áin	457.2 mm	1.5 ft	20	Multiple Ribbon
TE Connectivity Raychem Cable Protection A3DDB-4436G	IDC	Unshielded	2	Gold	Polarizing Key Strain Relief	Socket to Socket	0.1 in	2.54 mm	0.05 "	1.27 mm	0.76 Ám	30 Áin	914.4 mm	3 ft	44
TE Connectivity Raychem Cable Protection A3DDB-1436M	IDC	Unshielded	2	Gold	Polarizing Key Strain Relief	Socket to Socket	0.1 in	2.54 mm	0.05 "	1.27 mm	0.76 Ám	30 Áin	914.4 mm	3 ft	14	Multiple Ribbon
TE Connectivity Raychem Cable Protection A3DDB-4006M	IDC	Unshielded	2	Gold	Polarizing Key Strain Relief	Socket to Socket	0.1 in	2.54 mm	0.05 "	1.27 mm	0.76 Ám	30 Áin			40	Multiple Ribbon	152.4 mm	6 "	0.5 '
TE Connectivity Raychem Cable Protection A3DDB-2418M	IDC	Unshielded	2	Gold	Polarizing Key Strain Relief	Socket to Socket	0.1 in	2.54 mm	0.05 "	1.27 mm	0.76 Ám	30 Áin	457.2 mm	1.5 ft	24	Multiple Ribbon
