PFA.1B.307.CLLD52

Active

LEMO

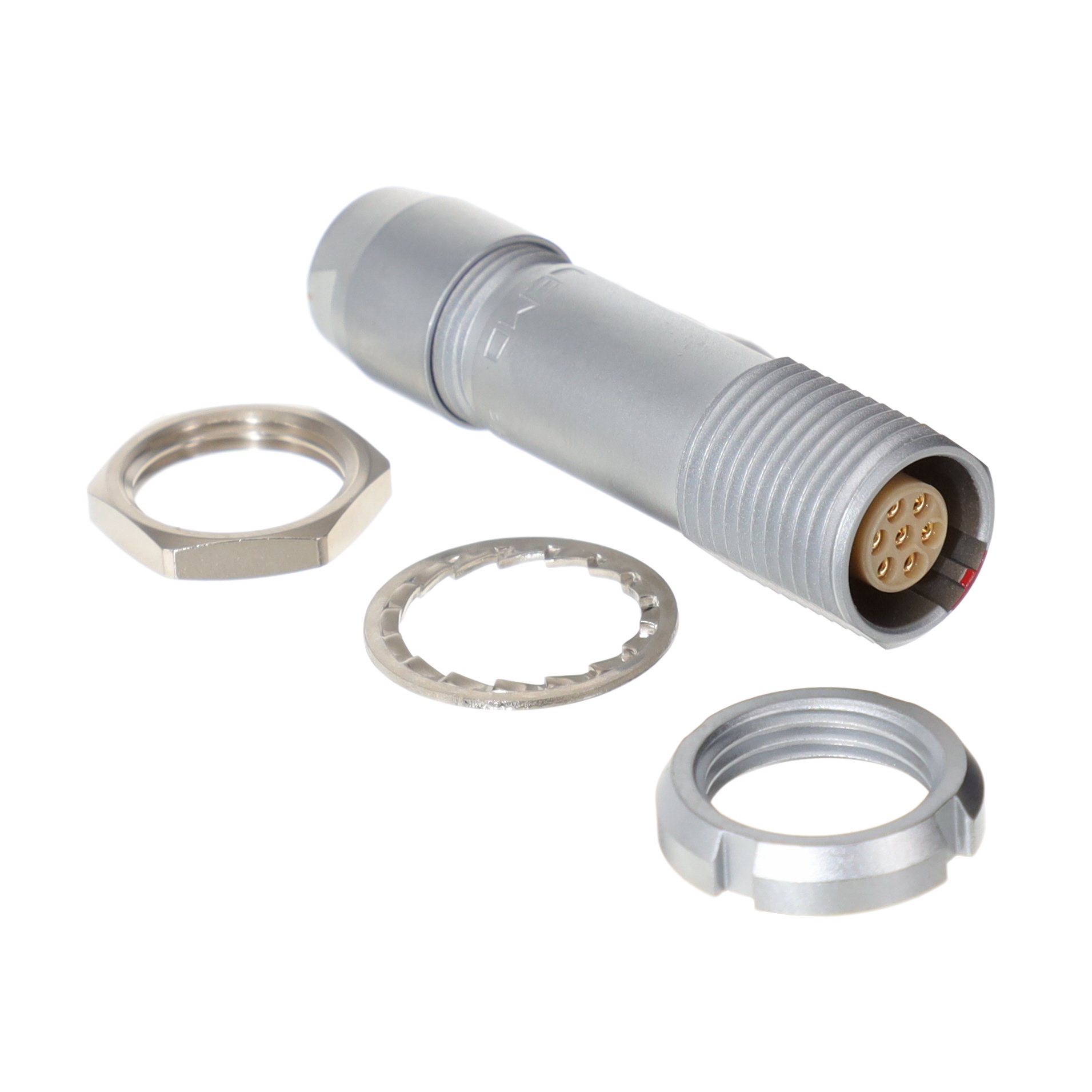

CONN RCPT FMALE 7P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PFA.1B.307.CLLD52

Active

LEMO

CONN RCPT FMALE 7P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 59.27
		10	$ 54.39
		25	$ 52.30
		50	$ 50.55
		100	$ 47.77

Description

General part information

PFA.1B Series

7 Position Circular Connector Receptacle, Female Sockets Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PFA.1B.307.CLLD52	PFA.1B Series

Backshell Material, Plating	Brass, Chrome	Brass, Chrome
Cable Opening	-	6.2 mm
Cable Opening	-	5.2 mm
Cable Opening	-	0.205 in
Cable Opening	-	0.244 in
Cable Opening	-	0.244 - 0.283 in
Cable Opening	-	6.2 - 7.2 mm
Cable Opening [diameter]	0.205 in, 0.165 in	0.165 - 0.205 in
Cable Opening [diameter]	4.2 mm	4.2 mm
Cable Opening [diameter]	5.2 mm	5.2 mm
Color	Silver	Silver
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	59 Áin	59 Áin
Contact Finish Thickness - Mating	1.5 Ám	1.5 Ám
Contact Material	Bronze	Bronze
Current Rating (Amps)	7 A	2 - 7 A
Fastening Type	Push-Pull	Push-Pull
Features	Backshell	Backshell
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Front and Rear Side Nut	Front and Rear Side Nut
Mounting Type	Free Hanging (In-Line), Panel Mount	Free Hanging (In-Line), Panel Mount
Number of Positions	7	7 - 14
Operating Temperature [Max]	250 °C	250 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	A	A
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome
Shell Material	Brass	Brass
Shell Size - Insert	307	307 - 314
Shielding	Shielded	Shielded
Termination	-	Crimp

PFA.1B Series

CONN RCPT FMALE 14P SOLDER CUP

Part	Shell Material	Contact Finish - Mating	Shell Size - Insert	Features	Number of Positions	Color	Ingress Protection	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Material Flammability Rating	Orientation	Mounting Type	Shielding	Backshell Material, Plating	Shell Finish	Insert Material	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Primary Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Feature	Connector Type	Fastening Type	Current Rating (Amps)	Cable Opening [custom]	Cable Opening [custom]	Termination	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]
LEMO PFA.1B.314.CLLD62Z	Brass	Gold	314	Backshell	14	Silver	IP50	6.2 mm	5.2 mm	0.205 in	0.244 in	UL94 V-0	A	Free Hanging (In-Line), Panel Mount	Shielded	Brass, Chrome	Chrome	Polyetheretherketone (PEEK)	Bronze	-55 °C	250 °C	Metal	59 Áin	1.5 Ám	Front and Rear Side Nut	Receptacle, Female Sockets	Push-Pull	2 A
LEMO PFA.1B.308.CYMD72	Brass	Gold	308	Backshell	8	Silver	IP50					UL94 V-0	A	Free Hanging (In-Line), Panel Mount	Shielded	Brass, Chrome	Chrome	Polyetheretherketone (PEEK)	Bronze	-55 °C	250 °C	Metal	59 Áin	1.5 Ám	Front and Rear Side Nut	Receptacle, Female Sockets	Push-Pull	5 A	0.244 in, 0.283 in	6.2 mm, 7.2 mm	Crimp
LEMO PFA.1B.307.CYMD52Z	Brass	Gold	307	Backshell	7	Silver	IP50					UL94 V-0	A	Free Hanging (In-Line), Panel Mount	Shielded	Brass, Chrome	Chrome	Polyetheretherketone (PEEK)	Bronze	-55 °C	250 °C	Metal	59 Áin	1.5 Ám	Front and Rear Side Nut	Receptacle, Female Sockets	Push-Pull	7 A			Crimp	0.165 in, 0.205 in	4.2 mm	5.2 mm
LEMO PFA.1B.314.CLLD72Z	Brass	Gold	314	Backshell	14	Silver	IP50					UL94 V-0	A	Free Hanging (In-Line), Panel Mount	Shielded	Brass, Chrome	Chrome	Polyetheretherketone (PEEK)	Bronze	-55 °C	250 °C	Metal	59 Áin	1.5 Ám	Front and Rear Side Nut	Receptacle, Female Sockets	Push-Pull	2 A	0.244 in, 0.283 in	6.2 mm, 7.2 mm
LEMO PFA.1B.307.CLLD52	Brass	Gold	307	Backshell	7	Silver	IP50					UL94 V-0	A	Free Hanging (In-Line), Panel Mount	Shielded	Brass, Chrome	Chrome	Polyetheretherketone (PEEK)	Bronze	-55 °C	250 °C	Metal	59 Áin	1.5 Ám	Front and Rear Side Nut	Receptacle, Female Sockets	Push-Pull	7 A				0.165 in, 0.205 in	4.2 mm	5.2 mm
LEMO PFA.1B.307.CYMD72Z	Brass	Gold	307	Backshell	7	Silver	IP50					UL94 V-0	A	Free Hanging (In-Line), Panel Mount	Shielded	Brass, Chrome	Chrome	Polyetheretherketone (PEEK)	Bronze	-55 °C	250 °C	Metal	59 Áin	1.5 Ám	Front and Rear Side Nut	Receptacle, Female Sockets	Push-Pull	7 A	0.244 in, 0.283 in	6.2 mm, 7.2 mm	Crimp
LEMO PFA.1B.307.CLLD52Z	Brass	Gold	307	Backshell	7	Silver	IP50					UL94 V-0	A	Free Hanging (In-Line), Panel Mount	Shielded	Brass, Chrome	Chrome	Polyetheretherketone (PEEK)	Bronze	-55 °C	250 °C	Metal	59 Áin	1.5 Ám	Front and Rear Side Nut	Receptacle, Female Sockets	Push-Pull	7 A				0.165 in, 0.205 in	4.2 mm	5.2 mm
