341-053-524-104

Active

EDAC Inc.

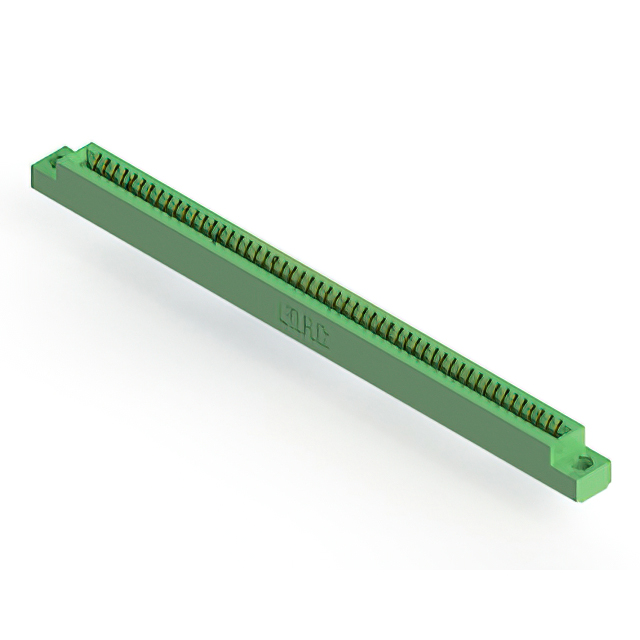

CARD EDGE CONNECTOR, 53 CONTACT(S), 1 ROW(S), FEMALE, STRAIGHT, 0.1 INCH PITCH, SOLDER TERMINAL, HOLE 0.156, GREEN INSULATOR,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Drawing EN

341-053-524-104

Active

EDAC Inc.

CARD EDGE CONNECTOR, 53 CONTACT(S), 1 ROW(S), FEMALE, STRAIGHT, 0.1 INCH PITCH, SOLDER TERMINAL, HOLE 0.156, GREEN INSULATOR,

Deep-Dive with AI

DocumentsDatasheet Drawing EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	341-053-524-104

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Flush Mount, Top Opening, Unthreaded
Flange Feature [diameter]	3.96 mm
Flange Feature [diameter]	0.156 in
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	53
Number of Positions/Bay/Row [custom]	53
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Single
Termination	Solder
Termination Rows	1

341-053 Series

Part	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Read Out	Material - Insulation	Number of Positions/Bay/Row [custom]	Flange Feature [diameter]	Flange Feature [diameter]	Flange Feature	Contact Finish	Mounting Type	Contact Type	Termination	Card Type	Termination Rows	Pitch [x]	Pitch [x]	Contact Material	Color	Number of Positions	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Gender
EDAC Inc. 341-053-521-102	1	10 Áin	0.25 Ám	Single	Polyester Thermoplastic	53	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	Gold	Through Hole	Semi Bellows	Solder	Non Specified - Single Edge	1	2.54 mm	0.1 in	Copper Alloy	Green	53	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Female
EDAC Inc. 341-053-521-108	1	10 Áin	0.25 Ám	Single	Polyester Thermoplastic	53			4-40 Flush Mount Threaded Insert Top Opening	Gold	Through Hole	Semi Bellows	Solder	Non Specified - Single Edge	1	2.54 mm	0.1 in	Copper Alloy	Green	53	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Female
EDAC Inc. 341-053-521-104	1	10 Áin	0.25 Ám	Single	Polyester Thermoplastic	53	3.96 mm	0.156 in	Flush Mount Top Opening Unthreaded	Gold	Through Hole	Semi Bellows	Solder	Non Specified - Single Edge	1	2.54 mm	0.1 in	Copper Alloy	Green	53	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Female
EDAC Inc. 341-053-522-107	1	10 Áin	0.25 Ám	Single	Polyester Thermoplastic	53			Flush Mount M3 Threaded Insert Top Opening	Gold	Through Hole	Semi Bellows	Solder	Non Specified - Single Edge	1	2.54 mm	0.1 in	Copper Alloy	Green	53	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Female
EDAC Inc. 341-053-500-102	1	10 Áin	0.25 Ám	Single	Diallyl Phthalate (DAP)	53	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	Gold	Through Hole	Semi Bellows	Solder Eyelet(s)	Non Specified - Single Edge	1	2.54 mm	0.1 in	Copper Alloy	Green	53	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Female
EDAC Inc. 341-053-522-101	1	10 Áin	0.25 Ám	Single	Polyester Thermoplastic	53				Gold	Through Hole	Semi Bellows	Solder	Non Specified - Single Edge	1	2.54 mm	0.1 in	Copper Alloy	Green	53	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Female
EDAC Inc. 341-053-500-103	1	10 Áin	0.25 Ám	Single	Diallyl Phthalate (DAP)	53	2.95 mm	0.116 in	Floating Bobbin Flush Mount	Gold	Through Hole	Semi Bellows	Solder Eyelet(s)	Non Specified - Single Edge	1	2.54 mm	0.1 in	Copper Alloy	Green	53	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Female
EDAC Inc. 341-053-520-102	1	10 Áin	0.25 Ám	Single	Polyester Thermoplastic	53	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	Gold	Through Hole	Semi Bellows	Solder	Non Specified - Single Edge	1	2.54 mm	0.1 in	Copper Alloy	Green	53	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Female
EDAC Inc. 341-053-524-104	1	10 Áin	0.25 Ám	Single	Polyester Thermoplastic	53	3.96 mm	0.156 in	Flush Mount Top Opening Unthreaded	Gold	Through Hole	Semi Bellows	Solder	Non Specified - Single Edge	1	2.54 mm	0.1 in	Copper Alloy	Green	53	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Female
EDAC Inc. 341-053-520-107	1	10 Áin	0.25 Ám	Single	Polyester Thermoplastic	53			Flush Mount M3 Threaded Insert Top Opening	Gold	Through Hole	Semi Bellows	Solder	Non Specified - Single Edge	1	2.54 mm	0.1 in	Copper Alloy	Green	53	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Female

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 23.11
Newark	Each	1	$ 25.82
		100	$ 20.80
		250	$ 16.92
		500	$ 16.44
		1000	$ 14.63

Description

General part information

341-053 Series

53 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
