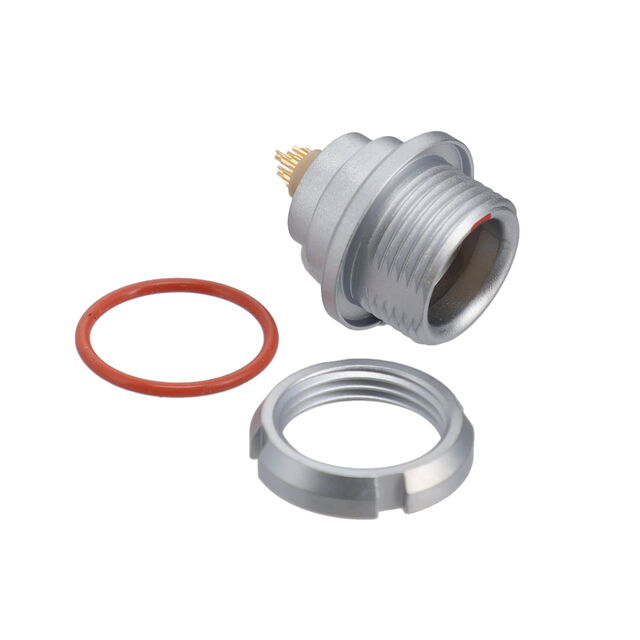

EEG.0K.307.CLL

Active

LEMO

CONN RCPT FMALE 7P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EEG.0K.307.CLL

Active

LEMO

CONN RCPT FMALE 7P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 37.35
		10	$ 32.71
		25	$ 31.29
		50	$ 30.28
		100	$ 29.28
		250	$ 27.66

Description

General part information

EEG.0K Series

7 Position Circular Connector Receptacle, Female Sockets Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EEG.0K.307.CLL	EEG.0K Series

Color	Silver	Black, Silver
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	59 Áin	59 Áin
Contact Finish Thickness - Mating	1.5 Ám	1.5 Ám
Contact Material	Bronze	Bronze, Constantan, Iron
Current Rating (Amps)	2.5 A	2 - 10 A
Fastening Type	Push-Pull	Push-Pull
Ingress Protection	IP66/IP68	IP66/IP68
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	-	Through Hole, Right Angle, Panel Mount
Number of Positions	7	2 - 9
Operating Temperature [Max]	200 °C	200 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	G	G
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome
Shell Material	Brass	Brass
Shell Size - Insert	307	302 - 309
Shielding	Shielded	Shielded
Termination	-	Solder, Crimp

EEG.0K Series

CONN RCPT FMALE 6P GOLD SLDR CUP

Part	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Shell Material	Insert Material	Primary Material	Contact Finish - Mating	Shell Size - Insert	Ingress Protection	Orientation	Current Rating (Amps)	Shielding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Color	Number of Positions	Contact Material	Material Flammability Rating	Mounting Feature	Termination	Shell Finish	Mounting Type
LEMO EEG.0K.306.KLL	Receptacle, Female Sockets	-55 °C	200 °C	Push-Pull	Brass	Polyetheretherketone (PEEK)	Metal	Gold	306	IP66/IP68	G	2.5 A	Shielded	59 Áin	1.5 Ám	Black	6	Bronze	UL94 V-0	Bulkhead - Front Side Nut
LEMO EEG.0K.309.CLV	Receptacle, Female Sockets	-55 °C	200 °C	Push-Pull	Brass	Polyetheretherketone (PEEK)	Metal	Gold	309	IP66/IP68	G	2 A	Shielded	59 Áin	1.5 Ám	Silver	9	Bronze	UL94 V-0	Bulkhead - Front Side Nut	Solder	Chrome	Panel Mount, Right Angle, Through Hole
LEMO EEG.0K.302.CLN	Receptacle, Female Sockets	-55 °C	200 °C	Push-Pull	Brass	Polyetheretherketone (PEEK)	Metal	Gold	302	IP66/IP68	G	10 A	Shielded	59 Áin	1.5 Ám	Silver	2	Bronze	UL94 V-0	Bulkhead - Front Side Nut	Solder	Chrome	Panel Mount, Through Hole
LEMO EEG.0K.302.CLV	Receptacle, Female Sockets	-55 °C	200 °C	Push-Pull	Brass	Polyetheretherketone (PEEK)	Metal	Gold	302	IP66/IP68	G	6 A	Shielded	59 Áin	1.5 Ám	Silver	2	Bronze	UL94 V-0	Bulkhead - Front Side Nut	Solder	Chrome	Panel Mount, Right Angle, Through Hole
LEMO EEG.0K.304.CLL	Receptacle, Female Sockets	-55 °C	200 °C	Push-Pull	Brass	Polyetheretherketone (PEEK)	Metal	Gold	304	IP66/IP68	G	7 A	Shielded	59 Áin	1.5 Ám	Silver	4	Bronze	UL94 V-0	Bulkhead - Front Side Nut		Chrome
LEMO EEG.0K.305.CLN	Receptacle, Female Sockets	-55 °C	200 °C	Push-Pull	Brass	Polyetheretherketone (PEEK)	Metal	Gold	305	IP66/IP68	G	6.5 A	Shielded	59 Áin	1.5 Ám	Silver		Bronze	UL94 V-0	Bulkhead - Front Side Nut	Solder	Chrome	Panel Mount, Through Hole
LEMO EEG.0K.304.CYM	Receptacle, Female Sockets	-55 °C	200 °C	Push-Pull	Brass	Polyetheretherketone (PEEK)	Metal	Gold	304	IP66/IP68	G	7 A	Shielded	59 Áin	1.5 Ám	Silver	4	Bronze	UL94 V-0	Bulkhead - Front Side Nut	Crimp	Chrome
LEMO EEG.0K.309.CLN	Receptacle, Female Sockets	-55 °C	200 °C	Push-Pull	Brass	Polyetheretherketone (PEEK)	Metal	Gold	309	IP66/IP68	G	2 A	Shielded	59 Áin	1.5 Ám	Silver	9	Bronze	UL94 V-0	Bulkhead - Front Side Nut	Solder	Chrome	Panel Mount, Through Hole
LEMO EEG.0K.307.CLL	Receptacle, Female Sockets	-55 °C	200 °C	Push-Pull	Brass	Polyetheretherketone (PEEK)	Metal	Gold	307	IP66/IP68	G	2.5 A	Shielded	59 Áin	1.5 Ám	Silver	7	Bronze	UL94 V-0	Bulkhead - Front Side Nut		Chrome
LEMO EEG.0K.305.CLL	Receptacle, Female Sockets	-55 °C	200 °C	Push-Pull	Brass	Polyetheretherketone (PEEK)	Metal	Gold	305	IP66/IP68	G	6.5 A	Shielded	59 Áin	1.5 Ám	Silver		Bronze	UL94 V-0	Bulkhead - Front Side Nut		Chrome
