45-280S.2C90.003

Active

EAO

CONFIG SW BODY SELECT NON-ILLUM

Search across all available documentation for this part.

Active

EAO

CONFIG SW BODY SELECT NON-ILLUM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	45-280S.2C90.003	45-280S Series

(Select First, Then Apply Filters) Compatible Series	45, EAO	45, EAO
Actuator Type	Selector	Selector
Illumination	Non-Illuminated	Non-Illuminated
Panel Cutout Dimensions	22.3 mm	22.3 - 30.5 mm
Requires	Contact Block(s)	Contact Block(s)
Type	Momentary	Momentary

CONFIG SW BODY SELECT NON-ILLUM

Part	Illumination	Actuator Type	Type	(Select First, Then Apply Filters) Compatible Series	Requires	Panel Cutout Dimensions
EAO 45-280S.2D50.003	Non-Illuminated	Selector	Momentary	45, EAO	Contact Block(s)	22.3 mm
EAO 45-280S.4C20.003	Non-Illuminated	Selector	Momentary	45, EAO	Contact Block(s)	30.5 mm
EAO 45-280S.2C50.003	Non-Illuminated	Selector	Momentary	45, EAO	Contact Block(s)	22.3 mm
EAO 45-280S.4D90.003	Non-Illuminated	Selector	Momentary	45, EAO	Contact Block(s)	30.5 mm
EAO 45-280S.4D20.003	Non-Illuminated	Selector	Momentary	45, EAO	Contact Block(s)	30.5 mm
EAO 45-280S.3C90.003	Non-Illuminated	Selector	Momentary	45, EAO	Contact Block(s)	22.3 mm
EAO 45-280S.2C90.003	Non-Illuminated	Selector	Momentary	45, EAO	Contact Block(s)	22.3 mm
EAO 45-280S.4D50.003	Non-Illuminated	Selector	Momentary	45, EAO	Contact Block(s)	30.5 mm
EAO 45-280S.2C60.003	Non-Illuminated	Selector	Momentary	45, EAO	Contact Block(s)	22.3 mm
EAO 45-280S.4C50.003	Non-Illuminated	Selector	Momentary	45, EAO	Contact Block(s)	30.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

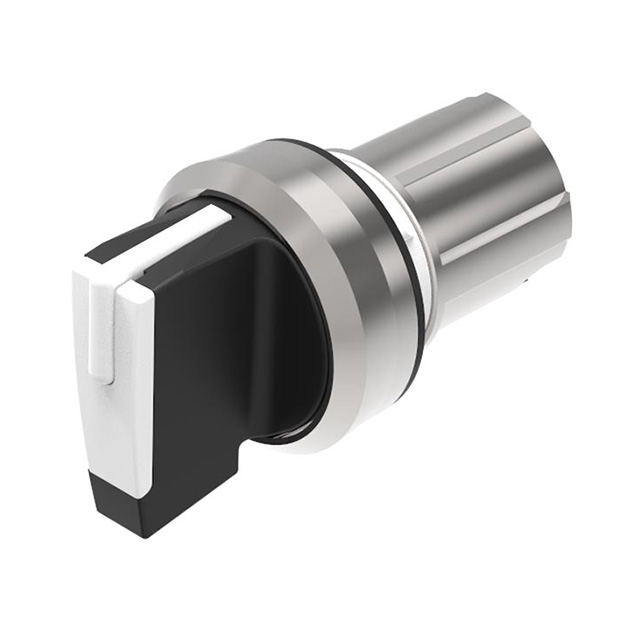

Configurable Switch Body Selector Non-Illuminated
