45-280S.2D50.003

Active

EAO

CONFIG SW BODY SELECT NON-ILLUM

Search across all available documentation for this part.

Active

EAO

CONFIG SW BODY SELECT NON-ILLUM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

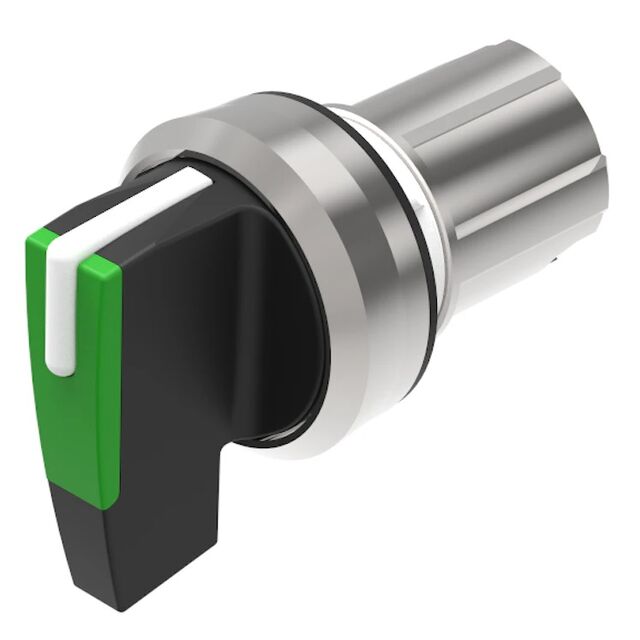

Configurable Switch Body Selector Non-Illuminated

Technical documentation and resources

Specification	45-280S.2D50.003	45-280S Series

(Select First, Then Apply Filters) Compatible Series	45, EAO	45, EAO
Actuator Type	Selector	Selector
Illumination	Non-Illuminated	Non-Illuminated
Panel Cutout Dimensions	22.3 mm	22.3 - 30.5 mm
Requires	Contact Block(s)	Contact Block(s)
Type	Momentary	Momentary

Part	Illumination	Actuator Type	Type	(Select First, Then Apply Filters) Compatible Series	Requires	Panel Cutout Dimensions
EAO 45-280S.2D50.003	Non-Illuminated	Selector	Momentary	45, EAO	Contact Block(s)	22.3 mm
EAO 45-280S.4C20.003	Non-Illuminated	Selector	Momentary	45, EAO	Contact Block(s)	30.5 mm
EAO 45-280S.2C50.003	Non-Illuminated	Selector	Momentary	45, EAO	Contact Block(s)	22.3 mm
EAO 45-280S.4D90.003	Non-Illuminated	Selector	Momentary	45, EAO	Contact Block(s)	30.5 mm
EAO 45-280S.4D20.003	Non-Illuminated	Selector	Momentary	45, EAO	Contact Block(s)	30.5 mm
EAO 45-280S.3C90.003	Non-Illuminated	Selector	Momentary	45, EAO	Contact Block(s)	22.3 mm
EAO 45-280S.2C90.003	Non-Illuminated	Selector	Momentary	45, EAO	Contact Block(s)	22.3 mm
EAO 45-280S.4D50.003	Non-Illuminated	Selector	Momentary	45, EAO	Contact Block(s)	30.5 mm
EAO 45-280S.2C60.003	Non-Illuminated	Selector	Momentary	45, EAO	Contact Block(s)	22.3 mm
EAO 45-280S.4C50.003	Non-Illuminated	Selector	Momentary	45, EAO	Contact Block(s)	30.5 mm
