M80-7035122

Active

Harwin Inc.

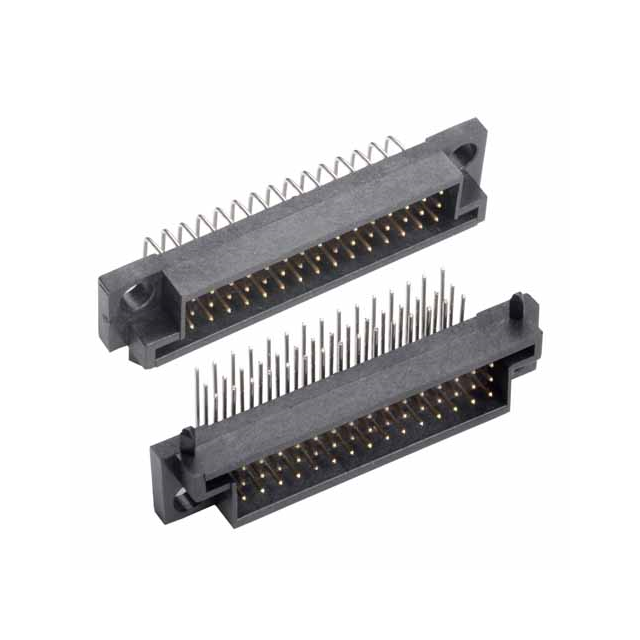

17 X 3-ROW MALE HORIZONTAL THROUGHBOARD CONN. NO JACKSCREWS ROHS COMPLIANT: NO

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet M80-001 +1

M80-7035122

Active

Harwin Inc.

17 X 3-ROW MALE HORIZONTAL THROUGHBOARD CONN. NO JACKSCREWS ROHS COMPLIANT: NO

Deep-Dive with AI

DocumentsDatasheet M80-001 +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M80-7035122

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin-Lead
Contact Finish Thickness - Mating	29.5 Áin
Contact Finish Thickness - Mating	0.75 Ám
Contact Finish Thickness - Post	3 µm
Contact Finish Thickness - Post	118.1 µin
Contact Length - Post	0.091 in
Contact Length - Post	2.3 mm
Contact Material	Copper Alloy
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	2.2 A
Fastening Type	Push-Pull
Features	Board Guide, Mating Flange
Insulation Color	Black
Insulation Height	0.358 in
Insulation Height	9.1 mm
Insulation Material	Polyamide (PA46), Nylon 4/6
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	51
Number of Positions Loaded	All
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	120 VDC

M80-703 Series

Part	Row Spacing - Mating	Row Spacing - Mating	Number of Rows	Current Rating (Amps)	Contact Type	Contact Shape	Number of Positions	Contact Finish - Post	Contact Material	Number of Positions Loaded	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Contact Finish - Mating	Features	Fastening Type	Insulation Color	Style	Shrouding	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Material Flammability Rating	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating [x]	Pitch - Mating [x]	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post	Insulation Material	Connector Type
Harwin Inc. M80-7034522	0.079 in	2 mm	3	2.2 A	Male Pin	Circular	45	Tin-Lead	Copper Alloy	All	Through Hole Right Angle	29.5 Áin	0.75 Ám	Solder	Gold	Board Guide Mating Flange	Push-Pull	Black	Board to Board Cable	Shrouded - 4 Wall	3 µm	118.1 µin	UL94 V-0	120 VDC	-55 °C	125 °C	0.079 in	2 mm	0.358 in	9.1 mm	0.091 in	2.3 mm	Polyamide (PA46) Nylon 4/6	Header
Harwin Inc. M80-7035122	0.079 in	2 mm	3	2.2 A	Male Pin	Circular	51	Tin-Lead	Copper Alloy	All	Through Hole Right Angle	29.5 Áin	0.75 Ám	Solder	Gold	Board Guide Mating Flange	Push-Pull	Black	Board to Board Cable	Shrouded - 4 Wall	3 µm	118.1 µin	UL94 V-0	120 VDC	-55 °C	125 °C	0.079 in	2 mm	0.358 in	9.1 mm	0.091 in	2.3 mm	Polyamide (PA46) Nylon 4/6	Header
Harwin Inc. M80-7032722	0.079 in	2 mm	3	2.2 A	Male Pin	Circular	27	Tin-Lead	Copper Alloy	All	Through Hole Right Angle	29.5 Áin	0.75 Ám	Solder	Gold	Board Guide Mating Flange	Push-Pull	Black	Board to Board Cable	Shrouded - 4 Wall	3 µm	118.1 µin	UL94 V-0	120 VDC	-55 °C	125 °C	0.079 in	2 mm	0.358 in	9.1 mm	0.091 in	2.3 mm	Polyamide (PA46) Nylon 4/6	Header

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	25	$ 15.27
Newark	Each	10	$ 17.88
		50	$ 16.13
		100	$ 15.25
		250	$ 13.94
		500	$ 12.97
		1000	$ 11.92
		2500	$ 11.66
