M80-6650842

Active

Harwin Inc.

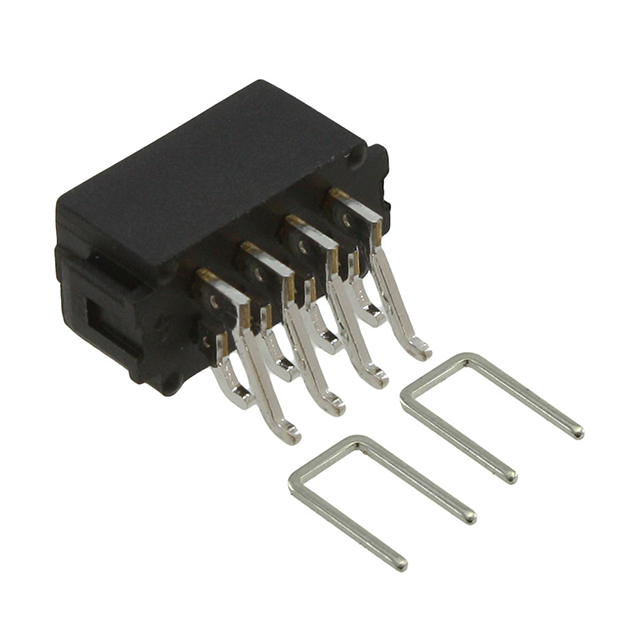

4+4 POS. MALE DIL HORIZONTAL SMT CONN. NO LATCHES ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsM80-001 M80-0110001 +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M80-6650842

Connector Type	Plug
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	29.5 Áin
Contact Finish Thickness - Mating	0.75 Ám
Contact Finish Thickness - Post	3 µm
Contact Finish Thickness - Post	118.1 µin
Contact Material	Brass
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	2.2 A
Fastening Type	Latch Holder
Features	Strain Relief Clips
Insulation Color	Black
Insulation Height	5.97 mm
Insulation Height	0.235 in
Insulation Material	Polyphenylene Sulfide (PPS), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	800 V

M80-665 Series

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Rows	Number of Positions	Contact Type	Pitch - Mating [x]	Pitch - Mating [x]	Contact Material	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Termination	Insulation Color	Contact Shape	Fastening Type	Contact Finish - Mating	Contact Finish - Post	Features	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Shrouding	Number of Positions Loaded	Material Flammability Rating	Row Spacing - Mating	Row Spacing - Mating	Style	Connector Type	Mounting Type	Voltage Rating
Harwin Inc. M80-6651842	3 µm	118.1 µin	2	18	Male Pin	0.079 in	2 mm	Brass	Polyphenylene Sulfide (PPS) Glass Filled	-55 °C	125 °C	5.97 mm	0.235 in	Solder	Black	Circular	Latch Holder	Gold	Tin	Strain Relief Clips	29.5 Áin	0.75 Ám	2.2 A	Shrouded - 4 Wall	All	UL94 V-0	0.079 in	2 mm	Board to Board Cable	Plug	Surface Mount Right Angle	800 V
Harwin Inc. M80-6651442	3 µm	118.1 µin	2	14	Male Pin	0.079 in	2 mm	Brass	Polyphenylene Sulfide (PPS) Glass Filled	-55 °C	125 °C	5.97 mm	0.235 in	Solder	Black	Circular	Latch Holder	Gold	Tin	Strain Relief Clips	29.5 Áin	0.75 Ám	2.2 A	Shrouded - 4 Wall	All	UL94 V-0	0.079 in	2 mm	Board to Board Cable	Plug	Surface Mount Right Angle	800 V
Harwin Inc. M80-6651422	3 µm	118.1 µin	2	14	Male Pin	0.079 in	2 mm	Brass	Polyphenylene Sulfide (PPS) Glass Filled	-55 °C	125 °C	5.97 mm	0.235 in	Solder	Black	Circular	Latch Holder	Gold	Tin-Lead	Strain Relief Clips	29.5 Áin	0.75 Ám	2.2 A	Shrouded - 4 Wall	All	UL94 V-0	0.079 in	2 mm	Board to Board Cable	Plug	Surface Mount Right Angle	800 V
Harwin Inc. M80-6652042	3 µm	118.1 µin	2	20	Male Pin	0.079 in	2 mm	Brass	Polyphenylene Sulfide (PPS) Glass Filled	-55 °C	125 °C	5.97 mm	0.235 in	Solder	Black	Circular	Latch Holder	Gold	Tin	Strain Relief Clips	29.5 Áin	0.75 Ám	2.2 A	Shrouded - 4 Wall	All	UL94 V-0	0.079 in	2 mm	Board to Board Cable	Plug	Surface Mount Right Angle	800 V
Harwin Inc. M80-6653442	3 µm	118.1 µin	2	34	Male Pin	0.079 in	2 mm	Brass	Polyphenylene Sulfide (PPS) Glass Filled	-55 °C	125 °C	5.97 mm	0.235 in	Solder	Black	Circular	Latch Holder	Gold	Tin	Strain Relief Clips	29.5 Áin	0.75 Ám	2.2 A	Shrouded - 4 Wall	All	UL94 V-0	0.079 in	2 mm	Board to Board Cable	Plug	Surface Mount Right Angle	800 V
Harwin Inc. M80-6651242	3 µm	118.1 µin	2	12	Male Pin	0.079 in	2 mm	Brass	Polyphenylene Sulfide (PPS) Glass Filled	-55 °C	125 °C	5.97 mm	0.235 in	Solder	Black	Circular	Latch Holder	Gold	Tin	Strain Relief Clips	29.5 Áin	0.75 Ám	2.2 A	Shrouded - 4 Wall	All	UL94 V-0	0.079 in	2 mm	Board to Board Cable	Plug	Surface Mount Right Angle	800 V
Harwin Inc. M80-6650842	3 µm	118.1 µin	2	8	Male Pin	0.079 in	2 mm	Brass	Polyphenylene Sulfide (PPS) Glass Filled	-55 °C	125 °C	5.97 mm	0.235 in	Solder	Black	Circular	Latch Holder	Gold	Tin	Strain Relief Clips	29.5 Áin	0.75 Ám	2.2 A	Shrouded - 4 Wall	All	UL94 V-0	0.079 in	2 mm	Board to Board Cable	Plug	Surface Mount Right Angle	800 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 5.16
		21	$ 4.69
		105	$ 4.13
		504	$ 3.51
		1008	$ 2.99
Newark	Each	100	$ 4.30
		250	$ 3.97
		500	$ 3.66
		1000	$ 3.36
		2500	$ 3.03

Description

General part information

M80-665 Series

Connector Header Surface Mount, Right Angle 8 position 0.079" (2.00mm)

Documents

Technical documentation and resources

M80-001

M80-0110001

Datasheet

M80, M83 Series Spec Sheet

Datasheet
