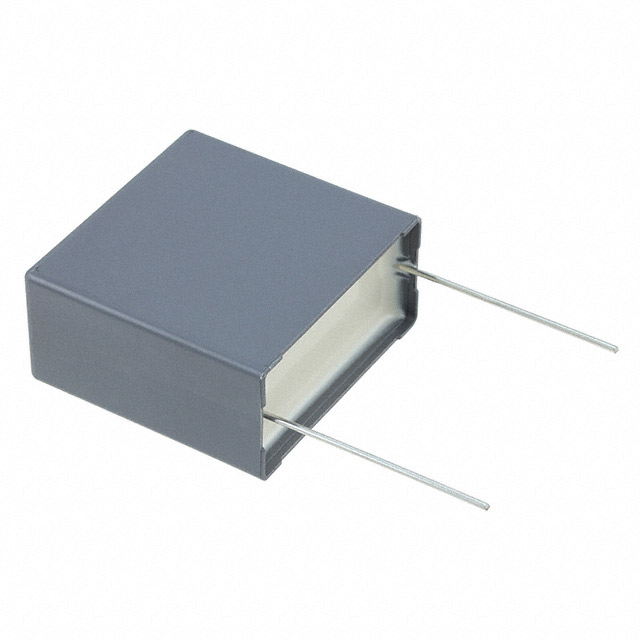

R46KW510050P0M

Active

KEMET

FILM CAPACITOR, POLYPROPYLENE, 560V, 20% +TOL, 20% -TOL, 10UF, THROUGH HOLE MOUNT, RADIAL LEADED

Search across all available documentation for this part.

Active

KEMET

FILM CAPACITOR, POLYPROPYLENE, 560V, 20% +TOL, 20% -TOL, 10UF, THROUGH HOLE MOUNT, RADIAL LEADED

Technical Specifications

Parameters and characteristics for this part

Specification	R46KW510050P0M

Applications	EMI, RFI Suppression
Capacitance	10 µF
Dielectric Material	Metallized, Polypropylene (PP)
Height - Seated (Max) [Max]	40.1 mm
Height - Seated (Max) [Max] [z]	1.579 in
Lead Spacing	37.5 mm
Lead Spacing	1.476 in
Mounting Type	Through Hole
Operating Temperature [Max]	110 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial
Ratings	X2
Size / Dimension [x]	1.634 "
Size / Dimension [x]	41.5 mm
Size / Dimension [y]	20 mm
Size / Dimension [y]	0.787 in
Termination	PC Pins
Tolerance	20 %
Voltage Rating - AC	275 V
Voltage Rating - DC	560 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Ratings	Voltage Rating - AC	Tolerance	Dielectric Material	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Capacitance	Mounting Type	Applications	Package / Case	Voltage Rating - DC	Lead Spacing	Lead Spacing	Height - Seated (Max) [Max]
KEMET R46KW510000M1M	-40 °C	110 °C	PC Pins	X2	275 V	20 %	Metallized Polypropylene (PP)	41.5 mm	1.181 in	1.634 "	30 mm	45.1 mm	1.776 in	10 µF	Through Hole	EMI RFI Suppression	Radial	560 V	37.5 mm	1.476 in
KEMET R46KW447000M1M	-40 °C	110 °C	PC Pins	X2	275 V	20 %	Metallized Polypropylene (PP)	41.5 mm	0.748 in	1.634 "	19 mm	32.1 mm	1.264 "	4.7 µF	Through Hole	EMI RFI Suppression	Radial	560 V	37.5 mm	1.476 in
KEMET R46KW510050P0M	-40 °C	110 °C	PC Pins	X2	275 V	20 %	Metallized Polypropylene (PP)	41.5 mm	0.787 in	1.634 "	20 mm		1.579 in	10 µF	Through Hole	EMI RFI Suppression	Radial	560 V	37.5 mm	1.476 in	40.1 mm
