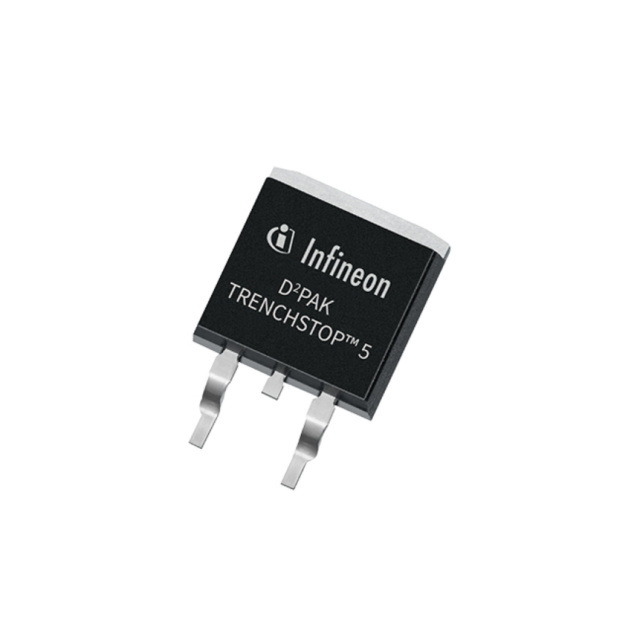

IGB20N65S5ATMA1

Active

Infineon Technologies

650 V, 28 A TRENCHSTOP™ IGBT IN TO263 HOUSING. WITH A SWITCHING FREQUENCY RANGE FROM 2 KHZ TO 20 KHZ IT PERFECTLY MATCHES APPLICATIONS LIKE HOME APPLIANCES, MOTOR CONTROL AND DRIVES OR UNITERRUPTIBLE POWER SUPPLY.

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

IGB20N65S5ATMA1

Active

Infineon Technologies

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IGB20N65S5ATMA1

Current - Collector (Ic) (Max) [Max]	40 A
Current - Collector Pulsed (Icm)	80 A
IGBT Type	Trench Field Stop
Mounting Type	Surface Mount
Operating Temperature [Max]	175 °C
Operating Temperature [Min]	-40 C
Package / Case	D2PAK (2 Leads + Tab), TO-263AB, TO-263-3
Supplier Device Package	PG-TO263-3-2
Switching Energy	150 µJ, 360 µJ
Td (on/off) @ 25°C	13 ns, 115 ns
Test Condition	20 A, 400 V, 20 Ohm, 15 V
Vce(on) (Max) @ Vge, Ic	1.7 V
Voltage - Collector Emitter Breakdown (Max)	650 V

IGB20N65 Series

Part	Voltage - Collector Emitter Breakdown (Max)	Switching Energy	Current - Collector Pulsed (Icm)	Mounting Type	Vce(on) (Max) @ Vge, Ic	Td (on/off) @ 25°C	Operating Temperature [Min]	Operating Temperature [Max]	Current - Collector (Ic) (Max) [Max]	IGBT Type	Supplier Device Package	Package / Case	Test Condition
Infineon Technologies IGB20N65S5ATMA1	650 V	150 µJ 360 µJ	80 A	Surface Mount	1.7 V	13 ns 115 ns	-40 C	175 °C	40 A	Trench Field Stop	PG-TO263-3-2	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	15 V 20 A 20 Ohm 400 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 2.97
		10	$ 1.92
		100	$ 1.33
		500	$ 1.07
	Digi-Reel®	1	$ 2.97
		10	$ 1.92
		100	$ 1.33
		500	$ 1.07
	Tape & Reel (TR)	1000	$ 0.99
		2000	$ 0.92
		3000	$ 0.90
Newark	Each (Supplied on Cut Tape)	1	$ 2.10
		10	$ 1.63
		25	$ 1.49
		50	$ 1.33
		100	$ 1.19
		250	$ 1.08
		500	$ 0.98
		1000	$ 0.93

Description

General part information

IGB20N65 Series

The 650 V, 20 A high speed switchingTRENCHSTOP™ 5 in D2Pak(TO263) package singleIGBTaddressing applications switching between 10 kHz and 40 kHz to deliver high efficiency, faster time-to-market cycles, circuit design complexity reduction and PCB bill of material cost optimization.
