Technical Specifications
Parameters and characteristics for this part
| Specification | TSB512IDT |
|---|---|
| Amplifier Type | General Purpose |
| Current - Output / Channel | 50 mA |
| Current - Supply | 1.8 mA |
| Gain Bandwidth Product | 6 MHz |
| Mounting Type | Surface Mount |
| Number of Circuits | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | Rail-to-Rail |
| Package / Case | 8-SOIC |
| Package / Case [x] | 0.154 in |
| Package / Case [y] | 3.9 mm |
| Slew Rate | 3 V/µs |
| Supplier Device Package | 8-SO |
| Voltage - Input Offset | 1.5 mV |
| Voltage - Supply Span (Max) [Max] | 36 V |
| Voltage - Supply Span (Min) [Min] | 2.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.53 | |
| 10 | $ 1.37 | |||
| 25 | $ 1.30 | |||
| 100 | $ 1.07 | |||
| 250 | $ 1.00 | |||
| 500 | $ 0.88 | |||
| 1000 | $ 0.70 | |||
| Digi-Reel® | 1 | $ 1.53 | ||
| 10 | $ 1.37 | |||
| 25 | $ 1.30 | |||
| 100 | $ 1.07 | |||
| 250 | $ 1.00 | |||
| 500 | $ 0.88 | |||
| 1000 | $ 0.70 | |||
| Tape & Reel (TR) | 2500 | $ 0.65 | ||
| 5000 | $ 0.62 | |||
| 12500 | $ 0.59 | |||
| Newark | Each (Supplied on Cut Tape) | 1 | $ 1.22 | |
| 10 | $ 0.80 | |||
| 25 | $ 0.78 | |||
| 50 | $ 0.75 | |||
| 100 | $ 0.72 | |||
| 250 | $ 0.71 | |||
| 500 | $ 0.71 | |||
Description
General part information

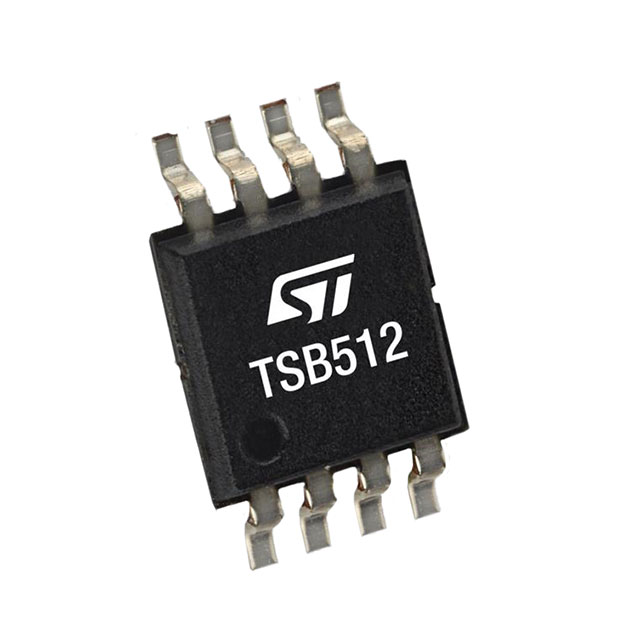

TSB512 Series
The TSB511, TSB512, TSB514 is a series of 6 MHz bandwidth amplifiers featuring rail-to-rail input and output, which are guaranteed to operate from 2.7 to 36 V single supply as well as from ± 1.35 V to ± 18 V dual supplies.
These amplifiers have the advantage of offering a large span of supply voltage and a wide bandwidth.
The combination of wide bandwidth, slew rate, low noise, rail-to-rail capability makes the TSB511, TSB512, TSB514 useful in a wide variety of applications such as: filters, power supply and motor control, actuator driving and resistive transducers.
