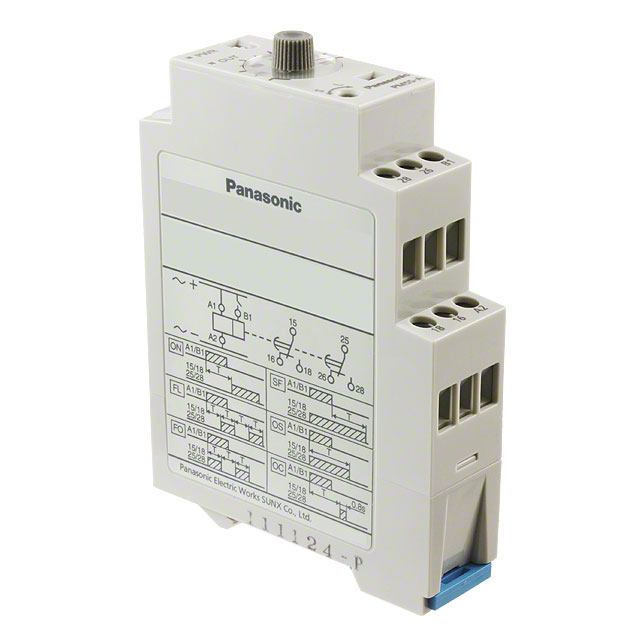

PM5S-A-24-240V

Obsolete

Panasonic Industrial Automation Sales

RELAY TIME DELAY 500HR 5A 250V

Search across all available documentation for this part.

Obsolete

Panasonic Industrial Automation Sales

RELAY TIME DELAY 500HR 5A 250V

Technical Specifications

Parameters and characteristics for this part

Specification	PM5S-A-24-240V

Circuit	DPDT (2 Form C)
Contact Rating @ Voltage	250 VAC, 5 A
Delay Time [Max]	500 Hrs
Delay Time [Min]	0.1 Sec
Function	Programmable (Multi-Function)
Mounting Type	DIN Rail
Relay Type	Mechanical Relay
Termination Style	Screw Terminal
Timing Adjustment Method	Hand Dial
Timing Initiate Method	Trigger Signal, Input Voltage
Voltage - Supply [Max]	240 VAC
Voltage - Supply [Min]	24 VAC

Part	Timing Initiate Method	Voltage - Supply [Min]	Voltage - Supply [Max]	Termination Style	Function	Relay Type	Contact Rating @ Voltage	Circuit	Timing Adjustment Method	Delay Time [Max]	Delay Time [Min]	Mounting Type
Panasonic Industrial Automation Sales PM5S-A-24-240V	Input Voltage Trigger Signal	24 VAC	240 VAC	Screw Terminal	Programmable (Multi-Function)	Mechanical Relay	5 A 250 VAC	DPDT (2 Form C)	Hand Dial	500 Hrs	0.1 Sec	DIN Rail

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Programmable (Multi-Function) Time Delay Relay DPDT (2 Form C) 0.1 Sec ~ 500 Hrs Delay 5A @ 250VAC DIN Rail
