MIKQ6-7SH056G

Active

ITT Cannon, LLC

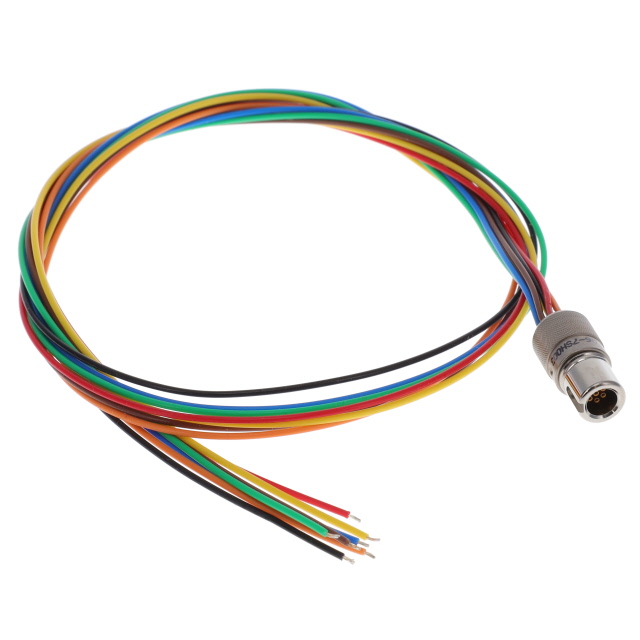

CIRC CBL 7POS PLUG TO WIRE 5'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MIKQ6-7SH056G

Active

ITT Cannon, LLC

CIRC CBL 7POS PLUG TO WIRE 5'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MIKQ6-7SH056G

1st Connector Gender	Female Sockets
1st Connector Mounting Type	Panel Mount
1st Connector Number of Positions	7
1st Connector Number of Positions Loaded	All
1st Connector Orientation [custom]	Keyed
1st Connector Type	Plug
2nd Connector Type	Wire Leads
Assembly Configuration	Standard
Cable Type	Individual
Color	Multiple
Length	1.52 m
Length	5 '
Shielding	Unshielded

MIKQ6 Series

Part	Orientation	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Connector Type	Contact Material	Primary Material	Insert Material	Shell Material	Color	Current Rating (Amps)	Termination	Features	Contact Finish - Mating	Shielding	Number of Positions	Shell Finish	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Applications	Cable Type	1st Connector Orientation [custom]	2nd Connector Type	1st Connector Mounting Type	Assembly Configuration	1st Connector Gender	1st Connector Number of Positions Loaded	1st Connector Type	1st Connector Number of Positions	Length [x]	Length [x]	Length	Length
ITT Cannon, LLC MIKQ6-7SL6	Keyed	Push-Pull	-55 °C	125 °C	Free Hanging (In-Line)	Female Sockets Plug	Copper Alloy	Metal	Thermoplastic	Brass	Silver	3 A	Crimp	Coupling Nut	Gold	Unshielded	7	Electroless Nickel	1.27 µm	50 µin	Instrumentation Medical
ITT Cannon, LLC MIKQ6-7SH145																Unshielded						Individual	Keyed	Wire Leads	Panel Mount	Standard	Female Sockets	All	Plug	7
ITT Cannon, LLC MIKQ6-19SH003G											Multiple					Unshielded						Individual	Keyed	Wire Leads	Panel Mount	Standard	Female Sockets	All	Plug	19	457.2 mm	1.5 ft
ITT Cannon, LLC MIKQ6-7SH056G											Multiple					Unshielded						Individual	Keyed	Wire Leads	Panel Mount	Standard	Female Sockets	All	Plug	7			1.52 m	5 '
ITT Cannon, LLC MIKQ6-19SH003N											Multiple					Unshielded						Individual	Keyed	Wire Leads	Panel Mount	Standard	Female Sockets	All	Plug	19	457.2 mm	1.5 ft
ITT Cannon, LLC MIKQ6-19SH50																Unshielded						Individual	Keyed	Wire Leads	Panel Mount	Standard	Female Sockets	All	Plug	19
ITT Cannon, LLC MIKQ6-19SH017G											Yellow					Unshielded						Individual	Keyed	Wire Leads	Panel Mount	Standard	Female Sockets	All	Plug	19			1.83 m	6 ft
ITT Cannon, LLC MIKQ6-37SH074											Multiple					Unshielded						Individual	Keyed	Wire Leads	Panel Mount	Standard	Female Sockets	All	Plug	37	457.2 mm	1.5 ft
ITT Cannon, LLC MIKQ6-7SH056											Multiple					Unshielded						Individual	Keyed	Wire Leads	Panel Mount	Standard	Female Sockets	All	Plug	7			1.52 m	5 '
ITT Cannon, LLC MIKQ6-7SH165																Unshielded						Individual	Keyed	Wire Leads	Panel Mount	Standard	Female Sockets	All	Plug	7

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 541.92
Newark	Each	10	$ 545.80
		25	$ 526.45
		50	$ 495.48

Description

General part information

MIKQ6 Series

Circular Cable Assembly Unshielded 5.00' (1.52m)
