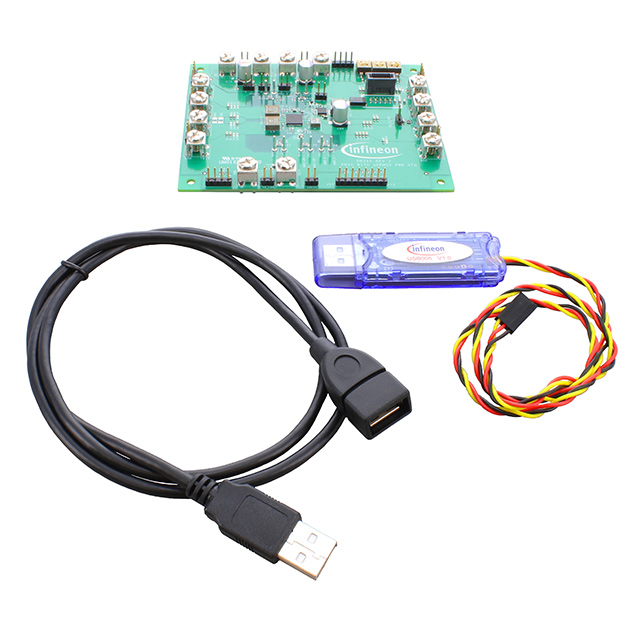

EVALPS540140ATOBO1
ActiveInfineon Technologies
EVALUATION BOARD - 5-OUTPUT DIGITAL PMBUS PMIC WITH 40A POWERSTAGE (4A+4A+2A+0.5A + 40A)
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EVALPS540140ATOBO1
ActiveInfineon Technologies
EVALUATION BOARD - 5-OUTPUT DIGITAL PMBUS PMIC WITH 40A POWERSTAGE (4A+4A+2A+0.5A + 40A)
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EVALPS540140ATOBO1 |
|---|---|
| Board Type | Fully Populated |
| Current - Output | 2 A, 500 mA, 4 A |
| Main Purpose | DC/DC, Step Down |
| Outputs and Type | Non-Isolated |
| Outputs and Type | 5 |
| Regulator Topology | Buck |
| Supplied Contents | Board(s) |
| Utilized IC / Part | IRPS5401 |
| Voltage - Input [Max] | 12 V |
| Voltage - Input [Min] | 6 V |
| Voltage - Output [Max] | 5.1 V |
| Voltage - Output [Min] | 0.25 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 69.71 | |
Description
General part information
PS540140A Series
IRPS5401 - DC/DC, Step Down 5, Non-Isolated Outputs Evaluation Board
