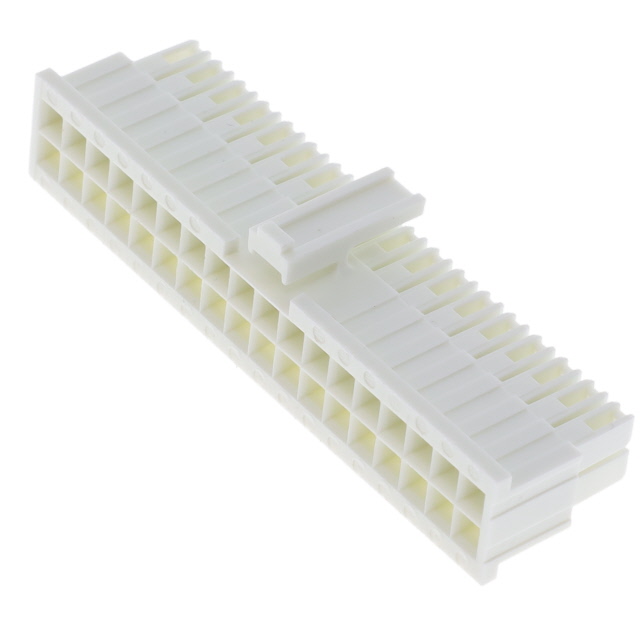

IPD1-18-D-K

Active

Samtec Inc.

CONN HOUSING F 36 POS 2.54MM CRIMP ST CABLE MOUNT WHITE TUBE

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HOUSING F 36 POS 2.54MM CRIMP ST CABLE MOUNT WHITE TUBE

Technical Specifications

Parameters and characteristics for this part

Part	Fastening Type	Contact Termination	Color	Features	Row Spacing [x]	Row Spacing	Contact Type	Connector Type	Number of Positions	Number of Rows	Mounting Type	Note	Pitch [x]	Pitch [x]	Insulation Material
Samtec Inc. IPD1-18-D-K	Latch Lock	Crimp	White	Polarizing Key	0.1 in	2.54 mm	Female Socket	Receptacle	36	2	Free Hanging (In-Line)	Contacts Not Included	2.54 mm	0.1 in	Polyamide (PA66) Nylon 6/6
Samtec Inc. IPD1-18-D	Latch Lock	Crimp	White		0.1 in	2.54 mm	Female Socket	Receptacle	36	2	Free Hanging (In-Line)	Contacts Not Included	2.54 mm	0.1 in	Polyamide (PA66) Nylon 6/6
Samtec Inc. IPD1-18-D-K-M	Latch Lock	Crimp	White	Polarizing Key	0.1 in	2.54 mm	Female Socket	Receptacle	36	2	Free Hanging (In-Line)	Contacts Not Included	2.54 mm	0.1 in	Polyamide (PA66) Nylon 6/6
Samtec Inc. IPD1-18-D-P	Latch Lock	Crimp	White	Polarizing Key	0.1 in	2.54 mm	Female Socket	Receptacle	36	2	Free Hanging (In-Line)	Contacts Not Included	2.54 mm	0.1 in	Polyamide (PA66) Nylon 6/6
Samtec Inc. IPD1-18-S-K	Latch Lock	Crimp	White	Polarizing Key			Female Socket	Receptacle	18	1	Free Hanging (In-Line)	Contacts Not Included	2.54 mm	0.1 in	Polyamide (PA66) Nylon 6/6
Samtec Inc. IPD1-18-D-R	Latch Lock	Crimp	White		0.1 in	2.54 mm	Female Socket	Receptacle	36	2	Free Hanging (In-Line)	Contacts Not Included	2.54 mm	0.1 in	Polyamide (PA66) Nylon 6/6

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

36 Rectangular Connectors - Housings Receptacle White 0.100" (2.54mm)
