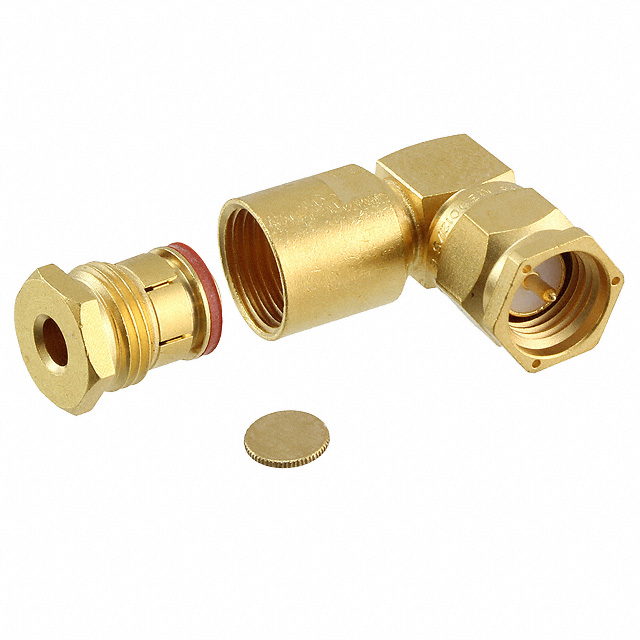

901-368-12

Active

Amphenol RF

CONN SMA 0HZ TO 12.4GHZ 50OHM CRIMP RA CABLE MOUNT PL GOLD

Search across all available documentation for this part.

Active

Amphenol RF

CONN SMA 0HZ TO 12.4GHZ 50OHM CRIMP RA CABLE MOUNT PL GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	901-368-12

Body Finish	Gold
Body Material	Beryllium Copper, Brass
Cable Group	188, 188A, 316, LMR-100, M17/119-RG174, RG-174
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	12.4 GHz
Housing Color	Gold
Impedance	50 Ohms
Includes	5 pcs - 1 Connector, 1 Clamp, 1 Braid Clamp, 2 Gaskets
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Clamp
Voltage Rating	375 V

Part	Connector Style	Mating Cycles	Dielectric Material	Number of Ports	Body Material	Mounting Type	Cable Group	Voltage Rating	Body Finish	Impedance	Shield Termination	Operating Temperature [Min]	Operating Temperature [Max]	Frequency - Max [Max]	Connector Type	Center Contact Plating	Includes	Center Contact Material	Housing Color	Contact Termination
Amphenol RF 901-368-12	SMA	500	Polytetrafluoroethylene (PTFE)	1	Beryllium Copper Brass	Free Hanging (In-Line)	188 188A 316 LMR-100 M17/119-RG174 RG-174	375 V	Gold	50 Ohms	Clamp	-65 ░C	165 °C	12.4 GHz	Male Pin Plug	Gold	1 Braid Clamp 1 Clamp 2 Gaskets 5 pcs - 1 Connector	Beryllium Copper	Gold	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
