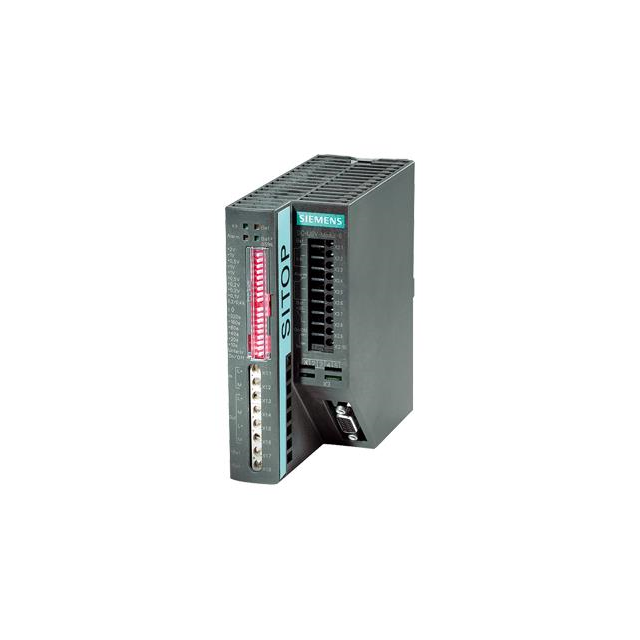

6EP19312DC42

Active

Siemens

SITOP DC-USV-MODUL 6A MIT USB-SS

Search across all available documentation for this part.

Active

Siemens

SITOP DC-USV-MODUL 6A MIT USB-SS

Technical Specifications

Parameters and characteristics for this part

Specification	6EP19312DC42

AC Outlets	1
Applications	Industrial Control, General Purpose
Approval Agency	CE, CSA, cULus, UL
Form	Din Rail
Height [z]	4.921 in
Height [z]	125 mm
Input Connector	Screw Terminals
Output Connector	Screw Terminals
Power - Rated	144 W
Size / Dimension [x]	4.921 in
Size / Dimension [x]	125 mm
Size / Dimension [y]	1.969 in
Size / Dimension [y]	50 mm
Type	Standby (No Regulation)
Voltage - Input	24 V
Voltage - Output	24 V

Part	DC Voltage - Input (Min) [Min]	Efficiency	Voltage - Output 1	Applications	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Approval Agency	Features	DC Voltage - Input (Max) [Max]	Input Type	Power (Watts)	Number of Outputs	Current - Output (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Standard Number	Size / Dimension [y]	Form	Output Connector	Height [z]	Height [z]	Input Connector	Voltage - Output	Voltage - Input	Type	Power - Rated	AC Outlets
Siemens 6EP19312EC42	22 V	96.2 %	24 V	Hazardous Locations Industrial ITE (Commercial)	4.92 in	125 mm	4.02 in	4.92 in	125 mm	102 mm	CE CSA cULus UL	Adjustable Output IP20	29 V	DC	360 W	1	15 A	-25 °C	60 °C	508
Siemens 6EP19312DC42				General Purpose Industrial Control	4.921 in		1.969 in		125 mm		CE CSA cULus UL										50 mm	Din Rail	Screw Terminals	4.921 in	125 mm	Screw Terminals	24 V	24 V	Standby (No Regulation)	144 W	1
Siemens 6EP19312FC42	22 V		24 V	Industrial ITE (Commercial)	4.92 in	125 mm	4.02 in	4.92 in	125 mm	102 mm	CE cULus EAC UL	Adjustable Output IP20	29 V	DC		1	40 A	-25 °C	60 °C	60950-1 UL 508

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 464.15
