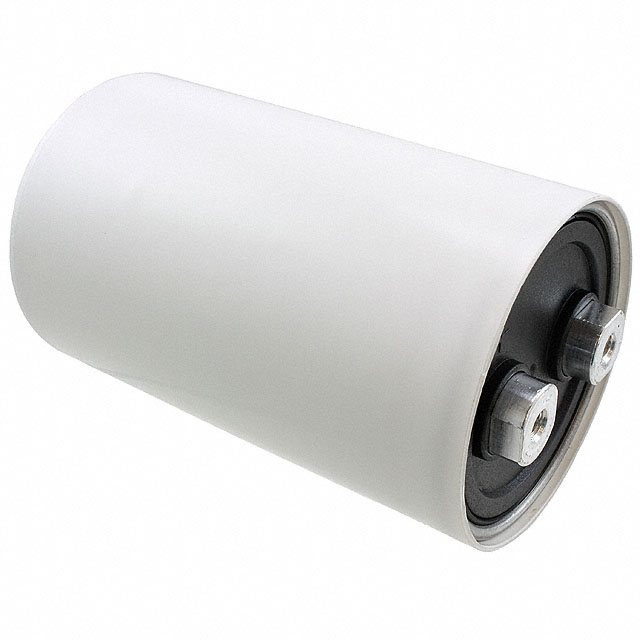

PEH200VO415AQB2

Active

KEMET

CAP ALUM 1500UF 400V SCREW CHAS

Search across all available documentation for this part.

Active

KEMET

CAP ALUM 1500UF 400V SCREW CHAS

Technical Specifications

Parameters and characteristics for this part

Specification	PEH200VO415AQB2

Applications	General Purpose
Capacitance	1.5 mF
ESR (Equivalent Series Resistance)	53 mOhm
Height - Seated (Max) [Max]	107 mm
Height - Seated (Max) [Max]	4.213 in
Impedance	30 mOhms
Lead Spacing	1.122 in
Lead Spacing	28.5 mm
Lifetime @ Temp.	15000 Hrs
Mounting Type	Chassis Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can - Screw Terminals
Polarization	Polar
Ripple Current @ Low Frequency	9.1 A
Size / Dimension [diameter]	66.6 mm
Size / Dimension [diameter]	2.622 in
Tolerance [Max]	30 %
Tolerance [Min]	-10 %
Voltage - Rated	400 V

Part	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Capacitance	Lifetime @ Temp.	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Tolerance [Min]	Tolerance [Max]	Lead Spacing	Lead Spacing	Impedance	Size / Dimension [diameter]	Size / Dimension [diameter]	ESR (Equivalent Series Resistance)	Ripple Current @ Low Frequency	Voltage - Rated	Polarization	Package / Case
KEMET PEH200VO415AQB2	107 mm	4.213 in	1.5 mF	15000 Hrs	Chassis Mount	85 °C	-40 °C	General Purpose	-10 %	30 %	1.122 in	28.5 mm	30 mOhms	66.6 mm	2.622 in	53 mOhm	9.1 A	400 V	Polar	Radial Can - Screw Terminals

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	96	$ 53.76
Newark	Each	50	$ 57.58
		100	$ 54.26

General part information

1500 µF 400 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 53mOhm @ 100Hz 15000 Hrs @ 85°C
