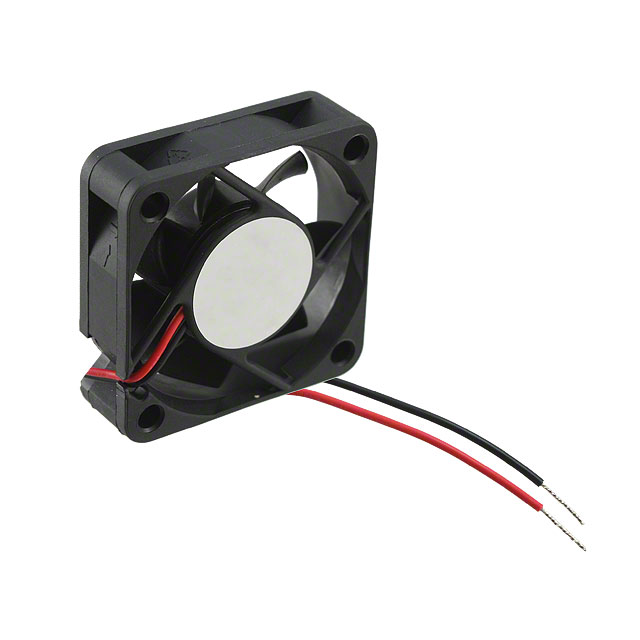

AFB0505MB

Active

Delta Electronics

DC AXIAL FAN, 5 V, SQUARE, 50 MM, 15 MM, BALL BEARING, 12.36 CFM

Search across all available documentation for this part.

Active

Delta Electronics

DC AXIAL FAN, 5 V, SQUARE, 50 MM, 15 MM, BALL BEARING, 12.36 CFM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 5VDC Square - 50mm L x 50mm H Ball 12.4 CFM (0.347m³/min) 2 Wire Leads

Technical documentation and resources

Specification	AFB0505MB	AFB0505 Series

Air Flow	0.347 m³/min	0.277 - 0.347 m³/min
Air Flow	12.4 CFM	9.9 - 12.4 CFM
Approval Agency	UL, CE, VDE, CSA	UL, CE, VDE, CSA
Bearing Type	Ball	Ball
Current Rating (Amps)	0.22 A	0.22 - 150 A
Fan Type	Tubeaxial	Tubeaxial
Features	-	Locked Rotor Sensor, Speed Sensor (Tach), Locked Rotor Protection
Lifetime @ Temp.	70000 Hrs	70000 Hrs
Material - Blade	Plastic	Plastic
Material - Frame	Plastic	Plastic
Noise	28 dB	24 - 28 dB
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-10 °C	-10 °C
Operating Temperature [Min]	-10 °C	-10 °C
Power (Watts)	1.1 W	0.75 - 1.1 W
RPM	4800 RPM	4000 - 4800 RPM
Size / Dimension [x]	50 mm	50 mm
Size / Dimension [z]	50 mm	50 mm
Static Pressure	0.181 in H2O	0.181 in H2O
Static Pressure	45.1 Pa	45.1 Pa
Termination	2 Wire Leads	2 Wire Leads, 3 Wire Leads
Voltage - Rated	5 V	5 V
Voltage Range [Max]	5.5 V	5.5 V
Voltage Range [Min]	4.5 V	4.5 V
Weight	0.071 lb	0.071 lb
Weight	32.21 g	32.21 g
Width [x]	15 mm	15 mm

Part	Fan Type	Material - Frame	Noise	Current Rating (Amps)	RPM	Voltage - Rated	Static Pressure	Static Pressure	Approval Agency	Material - Blade	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Bearing Type	Power (Watts)	Width [x]	Voltage Range [Min]	Voltage Range [Max]	Air Flow	Air Flow	Termination	Lifetime @ Temp.	Weight	Weight	Size / Dimension [z]	Size / Dimension [x]	Features
Delta Electronics AFB0505MB	Tubeaxial	Plastic	28 dB	0.22 A	4800 RPM	5 V	0.181 in H2O	45.1 Pa	CE, CSA, UL, VDE	Plastic	70 °C	70 °C	-10 °C	-10 °C	Ball	1.1 W	15 mm	4.5 V	5.5 V	0.347 m³/min	12.4 CFM	2 Wire Leads	70000 Hrs	0.071 lb	32.21 g	50 mm	50 mm
Delta Electronics AFB0505LB-R00	Tubeaxial	Plastic	24 dB	150 mA	4000 RPM	5 V			CE, CSA, UL, VDE	Plastic	70 °C	70 °C	-10 °C	-10 °C	Ball	0.75 W	15 mm	4.5 V	5.5 V	0.277 m³/min	9.9 CFM	3 Wire Leads	70000 Hrs	0.071 lb	32.21 g	50 mm	50 mm	Locked Rotor Sensor
Delta Electronics AFB0505LB-F00	Tubeaxial	Plastic	24 dB	150 mA	4000 RPM	5 V			CE, CSA, UL, VDE	Plastic	70 °C	70 °C	-10 °C	-10 °C	Ball	0.75 W	15 mm	4.5 V	5.5 V	0.277 m³/min	9.9 CFM	3 Wire Leads	70000 Hrs	0.071 lb	32.21 g	50 mm	50 mm	Locked Rotor Protection, Speed Sensor (Tach)
