EN3C4FX

Active

Switchcraft Inc.

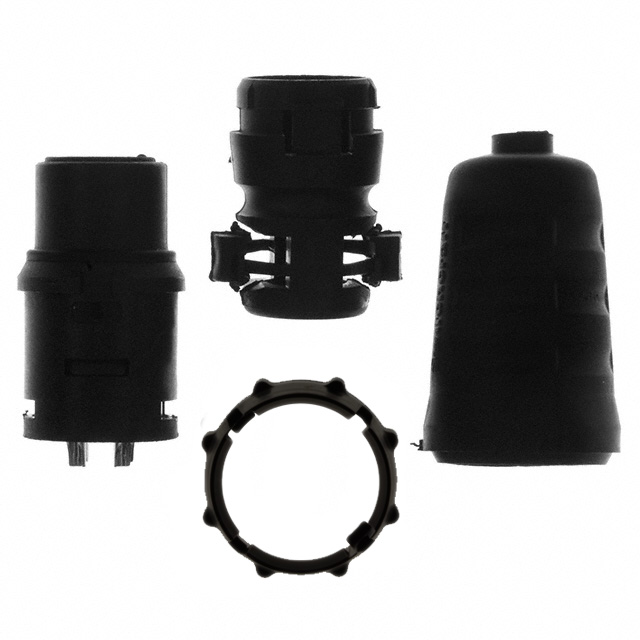

CONN PLUG FMALE 4P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN PLUG FMALE 4P GOLD SLDR CUP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Plug, Female Sockets Solder Cup

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	EN3C4FX	EN3C4F Series

Applications	Instrumentation, Medical, General Purpose, Marine	Instrumentation, Medical, General Purpose, Marine
Backshell Material, Plating	Thermoplastic	Thermoplastic
Cable Opening [diameter]	6.73 mm, 4.06 mm	4.06 - 6.73 mm
Cable Opening [diameter]	0.265 in, 0.16 in	0.16 - 0.265 in
Color	Black	Black
Connector Type	Female Sockets, Plug	Female Sockets, Plug
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	7.5 A	7.5 A
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Cable Clamp, Coupling Nut, Backshell	Cable Clamp, Coupling Nut, Backshell
Ingress Protection	IP66/IP68	IP66/IP68
Insert Material	Elastomer	Elastomer
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	4	4
Operating Temperature [Max]	65 °C	65 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	-	Crimp
Voltage Rating	250 VAC	250 VAC

CONN PLUG FMALE 4P GOLD SLDR CUP

Part	Primary Material	Contact Material	Voltage Rating	Ingress Protection	Number of Positions	Orientation	Contact Finish - Mating	Material Flammability Rating	Cable Opening [diameter]	Cable Opening [diameter]	Features	Fastening Type	Insert Material	Applications	Shielding	Color	Backshell Material, Plating	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Current Rating (Amps)	Mounting Type	Termination
Switchcraft Inc. EN3C4FX	Plastic	Copper Alloy	250 VAC	IP66/IP68	4	Keyed	Gold	UL94 V-0	4.06 mm, 6.73 mm	0.16 in, 0.265 in	Backshell, Cable Clamp, Coupling Nut	Bayonet Lock	Elastomer	General Purpose, Instrumentation, Marine, Medical	Unshielded	Black	Thermoplastic	65 °C	-40 °C	Female Sockets, Plug	7.5 A	Free Hanging (In-Line)
Switchcraft Inc. EN3C4FCKX	Plastic	Copper Alloy	250 VAC	IP66/IP68	4	Keyed	Gold	UL94 V-0	4.06 mm, 6.73 mm	0.16 in, 0.265 in	Backshell, Cable Clamp, Coupling Nut	Bayonet Lock	Elastomer	General Purpose, Instrumentation, Marine, Medical	Unshielded	Black	Thermoplastic	65 °C	-40 °C	Female Sockets, Plug	7.5 A	Free Hanging (In-Line)	Crimp
Switchcraft Inc. EN3C4FCX	Plastic	Copper Alloy	250 VAC	IP66/IP68	4	Keyed	Gold	UL94 V-0	4.06 mm, 6.73 mm	0.16 in, 0.265 in	Backshell, Cable Clamp, Coupling Nut	Bayonet Lock	Elastomer	General Purpose, Instrumentation, Marine, Medical	Unshielded	Black	Thermoplastic	65 °C	-40 °C	Female Sockets, Plug	7.5 A	Free Hanging (In-Line)	Crimp
