R1501J034B-T1-JE

Active

Nisshinbo Micro Devices Inc

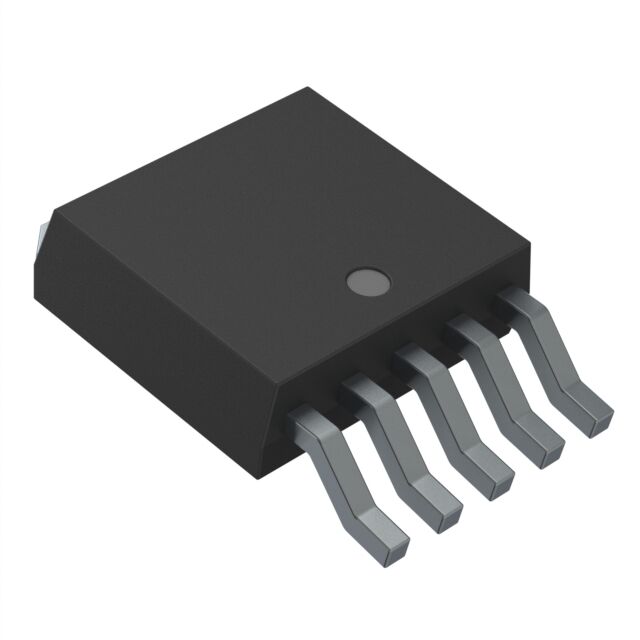

IC REG LINEAR 3.4V 1A TO252-5-P2

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

R1501J034B-T1-JE

Active

Nisshinbo Micro Devices Inc

IC REG LINEAR 3.4V 1A TO252-5-P2

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R1501J034B-T1-JE

Control Features	Enable
Current - Output	1 A
Current - Quiescent (Iq)	160 µA
Grade	Automotive
Mounting Type	Surface Mount
Number of Regulators	1
Operating Temperature [Max]	105 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Positive
Output Type	1.81 mOhm
Package / Case	TO-252-6, DPAK (5 Leads + Tab)
Protection Features	Over Temperature, Over Current, Short Circuit
Qualification	AEC-Q100
Supplier Device Package	TO-252-5-P2
Voltage - Input (Max) [Max]	24 V
Voltage - Output (Min/Fixed)	3.4 V
Voltage Dropout (Max) [Max]	1.125 V

R1501 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Dropout (Max) [Max]	PSRR	Output Type	Current - Output	Output Configuration	Current - Quiescent (Iq)	Supplier Device Package	Control Features	Protection Features	Number of Regulators	Mounting Type	Voltage - Input (Max) [Max]	Voltage - Output (Min/Fixed)	Package / Case	Qualification	Grade	Package / Case [custom]	Package / Case	Package / Case [custom]	Package / Case [custom]
Nisshinbo Micro Devices Inc R1501J120B-T1-FE	-40 °C	105 ░C	0.7 V	50 dB	1.81 mOhm	1 A	Positive	160 µA	TO-252-5-P2	Enable	Over Current Over Temperature Short Circuit	1	Surface Mount	24 V	12 V	TO-252-6 DPAK (5 Leads + Tab)
Nisshinbo Micro Devices Inc R1501J180B-T1-FE	-40 °C	105 ░C	0.7 V	50 dB	1.81 mOhm	1 A	Positive	160 µA	TO-252-5-P2	Enable	Over Current Over Temperature Short Circuit	1	Surface Mount	24 V	18 V	TO-252-6 DPAK (5 Leads + Tab)
Nisshinbo Micro Devices Inc R1501J060B-T1-FE	-40 °C	105 ░C	0.9 V	60 dB	1.81 mOhm	1 A	Positive	160 µA	TO-252-5-P2	Enable	Over Current Over Temperature Short Circuit	1	Surface Mount	24 V	6 V	TO-252-6 DPAK (5 Leads + Tab)
Nisshinbo Micro Devices Inc R1501J042B-T1-FE	-40 °C	105 ░C	1.125 V	60 dB	1.81 mOhm	1 A	Positive	160 µA	TO-252-5-P2	Enable	Over Current Over Temperature Short Circuit	1	Surface Mount	24 V	4.2 V	TO-252-6 DPAK (5 Leads + Tab)
Nisshinbo Micro Devices Inc R1501J063B-T1-FE	-40 °C	105 ░C	0.9 V	50 dB	1.81 mOhm	1 A	Positive	160 µA	TO-252-5-P2	Enable	Over Current Over Temperature Short Circuit	1	Surface Mount	24 V	6.3 V	TO-252-6 DPAK (5 Leads + Tab)
Nisshinbo Micro Devices Inc R1501J100B-T1-FE	-40 °C	105 ░C	0.775 V	50 dB	1.81 mOhm	1 A	Positive	160 µA	TO-252-5-P2	Enable	Over Current Over Temperature Short Circuit	1	Surface Mount	24 V	10 V	TO-252-6 DPAK (5 Leads + Tab)
Nisshinbo Micro Devices Inc R1501J034B-T1-JE	-40 °C	105 °C	1.125 V		1.81 mOhm	1 A	Positive	160 µA	TO-252-5-P2	Enable	Over Current Over Temperature Short Circuit	1	Surface Mount	24 V	3.4 V	TO-252-6 DPAK (5 Leads + Tab)	AEC-Q100	Automotive
Nisshinbo Micro Devices Inc R1501S090B-E2-FE	-40 °C	105 ░C	0.775 V	50 dB	1.81 mOhm	1 A	Positive	160 µA	6-HSOP-J	Enable	Over Current Over Temperature Short Circuit	1	Surface Mount	24 V	9 V				6-SOIC Variation	0.154 in 3.9 mm	4	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 2.28
		10	$ 1.69
		25	$ 1.54
		100	$ 1.38
		250	$ 1.30
		500	$ 1.25
		1000	$ 1.22
	Digi-Reel®	1	$ 2.28
		10	$ 1.69
		25	$ 1.54
		100	$ 1.38
		250	$ 1.30
		500	$ 1.25
		1000	$ 1.22
	Tape & Reel (TR)	3000	$ 1.17

Description

General part information

R1501 Series

Linear Voltage Regulator IC Positive Fixed 1 Output 1A TO-252-5-P2

Documents

Technical documentation and resources
