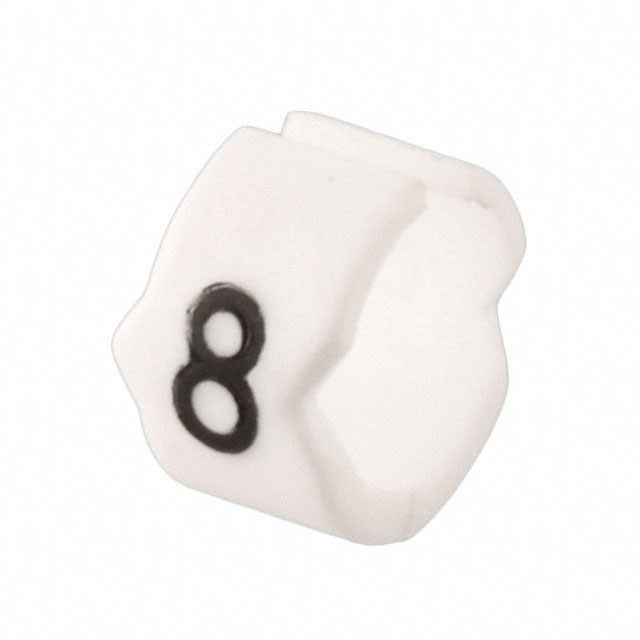

STD12W-8
ActiveTE Connectivity Raychem Cable Protection
WIRE MARKER CLIP-ON WHITE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
STD12W-8
ActiveTE Connectivity Raychem Cable Protection
WIRE MARKER CLIP-ON WHITE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | STD12W-8 |
|---|---|
| Cable Diameter [Max] [diameter] | 6 mm |
| Cable Diameter [Max] [diameter] | 0.236 in |
| Cable Diameter [Min] [diameter] | 0.177 in |
| Cable Diameter [Min] [diameter] | 4.5 mm |
| Color | White |
| Legend | 8 |
| Material | Polyoxymethylene (POM), Halogen Free |
| Type | Wire Marker, Clip-On |
STD12 Series
| Part | Color | Type | Material | Legend | Cable Diameter [Max] [diameter] | Cable Diameter [Max] [diameter] | Cable Diameter [Min] [diameter] | Cable Diameter [Min] [diameter] |
|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | White | Wire Marker Clip-On | Polyoxymethylene (POM) Halogen Free | Z | 6 mm | 0.236 in | 0.177 in | 4.5 mm |
TE Connectivity Raychem Cable Protection | White | Wire Marker Clip-On | Polyoxymethylene (POM) Halogen Free | 7 | 6 mm | 0.236 in | 0.177 in | 4.5 mm |
TE Connectivity Raychem Cable Protection | White | Wire Marker Clip-On | Polyoxymethylene (POM) Halogen Free | 1 | 6 mm | 0.236 in | 0.177 in | 4.5 mm |
TE Connectivity Raychem Cable Protection | White | Wire Marker Clip-On | Polyoxymethylene (POM) Halogen Free | D | 6 mm | 0.236 in | 0.177 in | 4.5 mm |
TE Connectivity Raychem Cable Protection | White | Wire Marker Clip-On | Polyoxymethylene (POM) Halogen Free | P | 6 mm | 0.236 in | 0.177 in | 4.5 mm |
TE Connectivity Raychem Cable Protection | White | Wire Marker Clip-On | Polyoxymethylene (POM) Halogen Free | I | 6 mm | 0.236 in | 0.177 in | 4.5 mm |
TE Connectivity Raychem Cable Protection | White | Wire Marker Clip-On | Polyoxymethylene (POM) Halogen Free | 2 | 6 mm | 0.236 in | 0.177 in | 4.5 mm |
TE Connectivity Raychem Cable Protection | White | Wire Marker Clip-On | Polyoxymethylene (POM) Halogen Free | 8 | 6 mm | 0.236 in | 0.177 in | 4.5 mm |
TE Connectivity Raychem Cable Protection | White | Wire Marker Clip-On | Polyoxymethylene (POM) Halogen Free | T | 6 mm | 0.236 in | 0.177 in | 4.5 mm |
TE Connectivity Raychem Cable Protection | White | Wire Marker Clip-On | Polyoxymethylene (POM) Halogen Free | 4 | 6 mm | 0.236 in | 0.177 in | 4.5 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 2700 | $ 0.07 | |
Description
General part information
STD12 Series
Wire Marker, Clip-On White Polyoxymethylene (POM), Halogen Free
