IRAUDAMP22

Active

Infineon Technologies

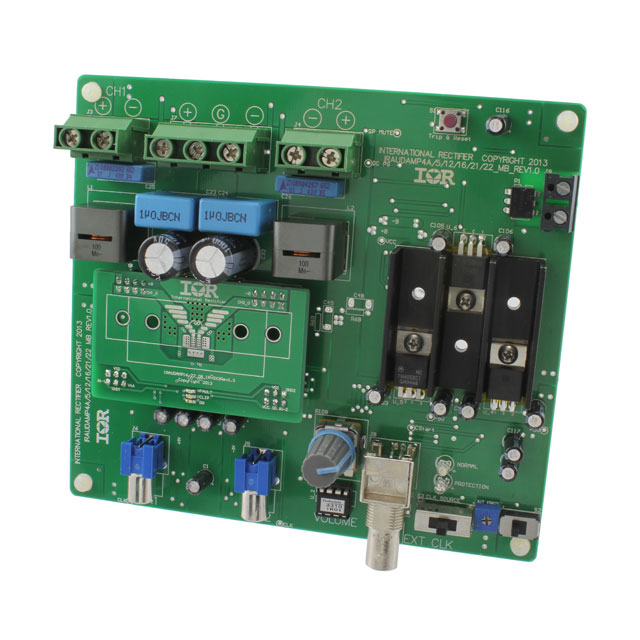

REFERENCE DESIGN BOARD - 50W/2OHMS X 2-CHANNEL CLASS D AUDIO POWER AMPLIFIER FEATURING IR4322

Search across all available documentation for this part.

Active

Infineon Technologies

REFERENCE DESIGN BOARD - 50W/2OHMS X 2-CHANNEL CLASS D AUDIO POWER AMPLIFIER FEATURING IR4322

Technical Specifications

Parameters and characteristics for this part

Specification	IRAUDAMP22

Board Type	Fully Populated
Max Output Power x Channels @ Load	2, 80 W
Output Type	2-Channel (Stereo)
Supplied Contents	Board(s)
Utilized IC / Part	IR4322
Voltage - Supply [Max]	13.5 V
Voltage - Supply [Min]	-12 V

Part	Supplied Contents	Board Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Utilized IC / Part	Output Type	Max Output Power x Channels @ Load
Infineon Technologies IRAUDAMP22	Board(s)	Fully Populated	13.5 V	-12 V	IR4322	2-Channel (Stereo)	2 80 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 260.48

General part information

IR4322 PowIRaudio™ 2-Channel (Stereo) Output Class D Audio Amplifier Evaluation Board
