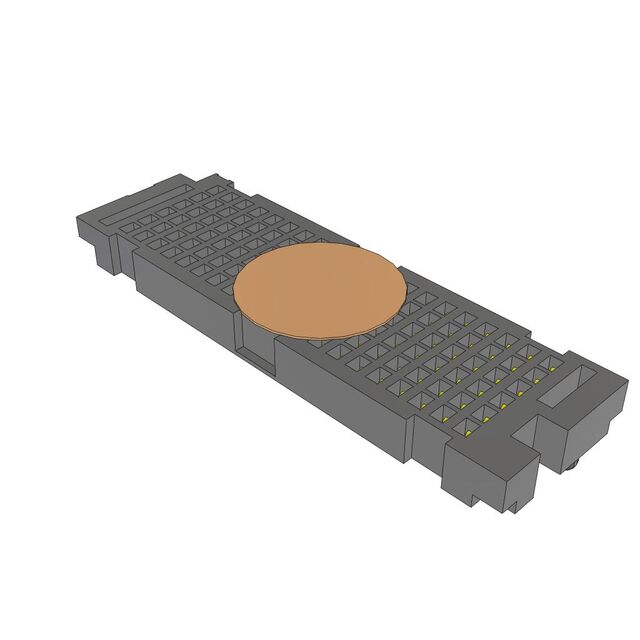

LPAF-20-03.0-L-06-2-K-TR
ActiveSamtec Inc.
CONN ARRAY RCPT 120POS SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
LPAF-20-03.0-L-06-2-K-TR
ActiveSamtec Inc.
CONN ARRAY RCPT 120POS SMD GOLD
Technical Specifications
Parameters and characteristics for this part
| Specification | LPAF-20-03.0-L-06-2-K-TR |
|---|---|
| Connector Type | Female Sockets, Array |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Features | Pick and Place, Board Guide |
| Height Above Board [z] | 2.79 mm |
| Height Above Board [z] | 0.11 " |
| Mated Stacking Heights | 4 mm, 4.5 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 120 |
| Number of Rows | 6 |
| Pitch [x] | 0.05 in |
| Pitch [x] | 1.27 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 14.26 | |
| 10 | $ 13.50 | |||
| 25 | $ 13.00 | |||
| 50 | $ 12.68 | |||
| 100 | $ 10.35 | |||
| 250 | $ 9.57 | |||
| Tape & Reel (TR) | 550 | $ 8.01 | ||
| 1100 | $ 7.91 | |||
Description
General part information
LPAF-20 Series
120 Position Connector Array, Female Sockets Surface Mount Gold
